Asphalt Hot Box Reclaimer – Infrared Asphalt Heater for Recycled Asphalt Pavement
The Asphalt Hot Box Reclaimer is a dual-function asphalt hot box and infrared asphalt heater, giving you full control of hot mix—whether you're reclaiming recycled asphalt pavement or hauling virgin mix from the plant. Keep your crew moving with steady heat, efficient propane use, and hot mix that stays pliable up to 48 hours.
Please call for a shipping quote.
- Available in 2 to 4 ton capacities
- Keeps asphalt hot up to 48 hours
- Save up to 75% in cold patch costs
Availability: In stock
Have questions? We’re here to help!
Speak to an Asphalt Expert!
Asphalt Hot Box Reclaimer
The asphalt hot box reclaimer is designed for pros who need a mobile, efficient way to manage hot mix on demand. Whether you're heating recycled asphalt pavement or transporting fresh mix from the plant, this unit’s dual infrared heaters and programmable logic controller ensure even heat distribution without burning.
Overview & Use Cases
Use it for:
- Pothole repair, utility cuts, and patch prep
- Crack filling with hot crack filler
- Pre-sealcoating prep on driveways, school lots, and commercial properties
Internal bin dividers allow effective cold material reclaiming, while venturi technology keeps things low maintenance—no blowers or batteries to worry about.
Key Features & Benefits
- Dual Infrared Heaters – 25,000–55,000 BTUs of efficient, propane-powered heat
- Programmable Logic Controller (PLC) – Maintains 300°F target safely for 48 hours
- No Diesel Required – Clean propane system avoids carbon-heavy burners
- Insulated Dual Hopper – Optimized for reclaiming cold asphalt chunks
- Venturi System – No blower, fewer parts, less upkeep
- Automatic Spark Ignition – Auto gas shut-off for safety
- Chute-Style Loading Doors – Fast, clean loading at the plant
- Auto-Lock Unloading – Prevents accidental material loss
- Rugged Trailer Design – Maintenance-free torsion axles and 6"x2" tubing
Application Instructions
You’ll Need:
- Propane tanks (100 lb)
- Asphalt rake and compaction tool
- PPE (heat gloves, goggles)
How to Use:
- 1. Load virgin mix or recycled asphalt pavement
- 2. Set the PLC to maintain temp (around 300°F)
- 3. Use chute to load and auto-lock doors to unload
- 4. Apply to surface and compact
- 5. Compact, then finish with crack sealing and sealcoat
Storage & Handling
- Store indoors or under tarp to protect electronics
- Purge and disconnect propane after use
- Clean hopper bins regularly
- Inspect PLC and spark ignition quarterly
- Replace heater cartridges (800–1,000 hr lifespan) as needed
Why Choose the 2THBR-TD Reclaimer?
Most hotboxes can only hold heat—this one also makes heat. Use leftover mix, cut cold patch use, and reclaim value from every job. Built for contractors who want ROI and reliability, it’s a no-brainer for anyone running winter or year-round patching operations.
- Reclaims what others waste
- Saves on fuel and disposal costs
- No diesel, no oil, no fuss
| General Specifications | 2THBR-T (D) | 3THBR-T (D) | 4THBR-T (D) |
|---|---|---|---|
| Overall Length (A) | 176-3/8" | 196-3/4" | 203-5/8" |
| Overall Width (B) | 98-3/4" | 98-3/4" | 98-3/4" |
| Deck Height (C) | 21-5/8" | 22-5/8" | 22-5/8" |
| Hotbox Chute Height (D) | 33-1/2" | 33-3/4" | 36-5/8" |
| Overall Height (E) | 76-1/4" | 81-13/16" | 90" |
| Channel Height (F) | 21-1/8" | 24" | 21" |
| Hotbox Shovel Width (G) | 60" | 59-7/8" | 59-7/8" |
| Hotbox Shovel Length (H) | 40" | 58-7/8" | 64-7/8" |
| Trailer Deck Space Length (I) | 48" | 65-1/2" | 58-1/8" |
| Trailer Deck/Hopper Width (J) | 72-5/8" | 73-1/4" | 73-1/4" |
| Useable Deck Space (K) | 20 sq. ft. | 30 sq. ft. | 25 sq. ft. |
| Shovel Opening Width (L) | 19-3/4" | 19-3/4" | 19-3/4" |
| Shovel Opening Height (M) | 13" | 13" | 13" |
| Lid Opening (N) | 91-5/8" | 102-1/4" | 116" |
| Lid Opening (O) | 72-3/4" | 94-1/2" | 104-3/8" |

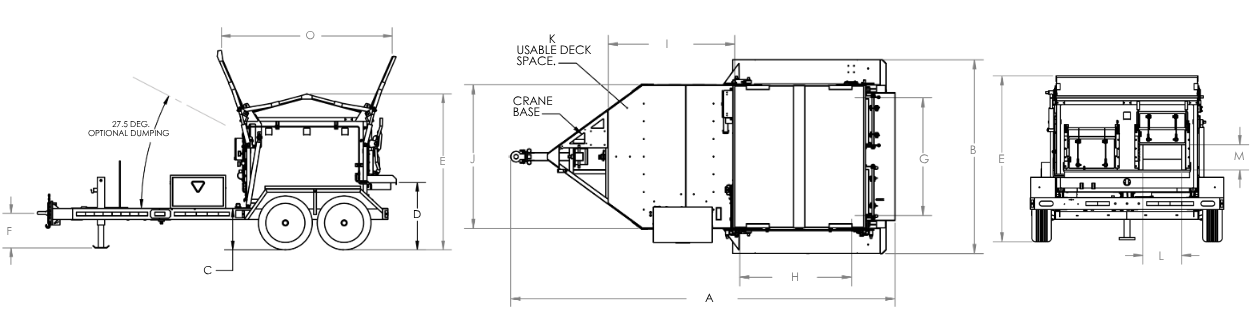

Trailer Layout Reference
| Other Specifications | 2THBR-T (D) | 3THBR-T (D) | 4THBR-TD |
|---|---|---|---|
| Empty Weight | 2,950 lbs | 3,500 lbs | 4,400 lbs |
| Gross Weight | 6,950 lbs | 9,500 lbs | 12,400 lbs |
| Torsion Flexride Axles | (2) 5,200 lbs | (2) 5,200 lbs | (2) 7,000 lbs |
| Wheels & Tires | ST225/75 R15 LRC 6 PLY | ST225/75 R15 LRC 6 PLY | ST235/80 R16 LRC 6 PLY |
| Infrared Radiant Heaters | 25,000 BTU | 35,000 BTU | 35,000 BTU |
| Hotbox Capacity | 2.4 tons | 3.4 tons | 4.4 tons |
| Insulation | 2" | 2" | 2" |
| Inner Wall (SS) | 16 GA | 16 GA | 16 GA |
| Outer Wall (Mild Steel) | 14 GA | 14 GA | 14 GA |
| Hopper Construction | 11 GA | 11 GA | 11 GA |
| LPG 100# Vapour (Fast Fill) | ✔ | ✔ | ✔ |
Reclaim your time. Reuse your asphalt. Rule the road.
The Asphalt Hot Box Reclaimer keeps material hot and ready—less waste, more profit. Order today and work smarter.
ANSWER FOR YOUR CONCERNS
| Questions | Answers |
|---|---|
| Can I reheat cold chunks of asphalt? | Yes, the dual infrared heater reclaims recycled asphalt pavement effectively in under 12 hours. |
| How much hot mix can I store? | Available in 2 to 4 ton sizes—up to a full day's patchwork. |
| What fuel does it use? | Clean-burning propane, not diesel. Just refill your 100 lb LPG tanks. |
| Does it keep heat overnight? | Yes. The unit maintains target temps for up to 48 hours. |
| Is this system safe? | It includes an automatic spark ignition with gas shutoff if ignition fails. |
| Can it be used as a standard hotbox? | Yes, it holds hot mix at plant temps for up to 48 hours, like a traditional hotbox. |
| Does it require a cold weather kit? | No—infrared heat and insulation make it ready for year-round performance. |
| Can I reclaim asphalt from previous jobs? | Absolutely. Just load it in and let the unit bring it back to temp overnight. |
| How efficient is it on fuel? | Infrared heating uses ~50,000 BTU vs 105,000 BTU diesel burners—nearly 50% fuel savings. |
| What makes it different from other reclaimers? | No diesel, fewer moving parts, safer, and better at evenly heating through a dual-hopper design. |
Have questions? We’re here to help!
Speak to an Asphalt Expert!
| Empty Weight | 2,950 to 4,400 lbs (model dependent) |
| Gross Weight | 6,950 to 12,400 lbs (model dependent) |
| Heating Type | Dual Infrared (25,000–55,000 BTU) |
| Fuel Type | 100 lb LPG vapor propane |
| Hot Mix Capacity | 2.4 to 4.4 tons (model dependent) |
| Retention Time | Up to 48 hours |
| Reclaim Time | 8–12 hours |
| Max Temperature | 300°F with PLC control |
| Chamber Material | 14 GA mild steel + 16 GA stainless steel |
| Insulation | 2" thick, dual-hopper design |
| Unloading | Auto-lock rear doors |
| Safety Features | Spark ignition, auto gas shutoff |
| Trailer Frame | 6"x2" steel tubing, torsion axle |
| Axles | (2) 5,200 lbs (2THBR/3THBR), (2) 7,000 lbs (4THBR) |
| Wheels & Tires | ST225/75 R15 or ST235/80 R16 Radials, 6 PLY |
| Infrared Radiant Heaters | 25,000–35,000 BTU (model dependent) |
| Inner Wall (SS) | 16 GA stainless steel |
| Outer Wall (Mild Steel) | 14 GA |
| Hopper Construction | 11 GA |
| LPG 100# Vapour (Fast Fill) | ✔ Included |
