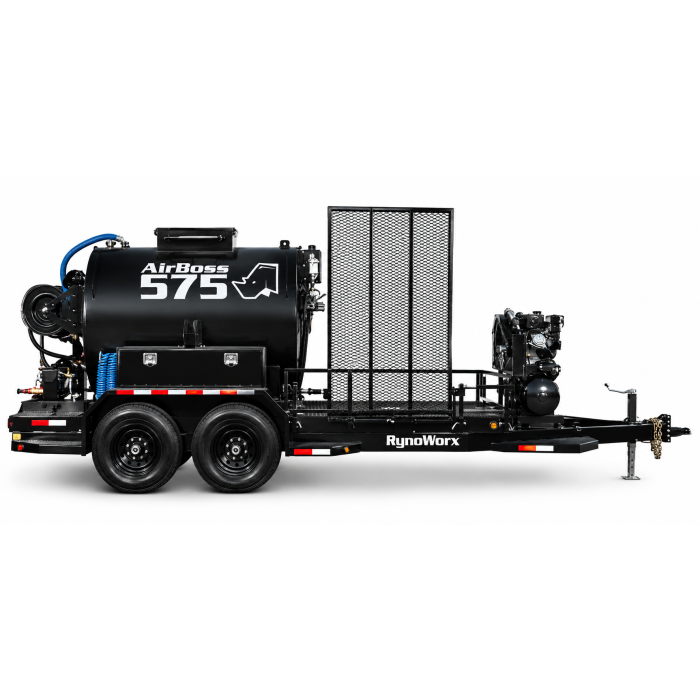

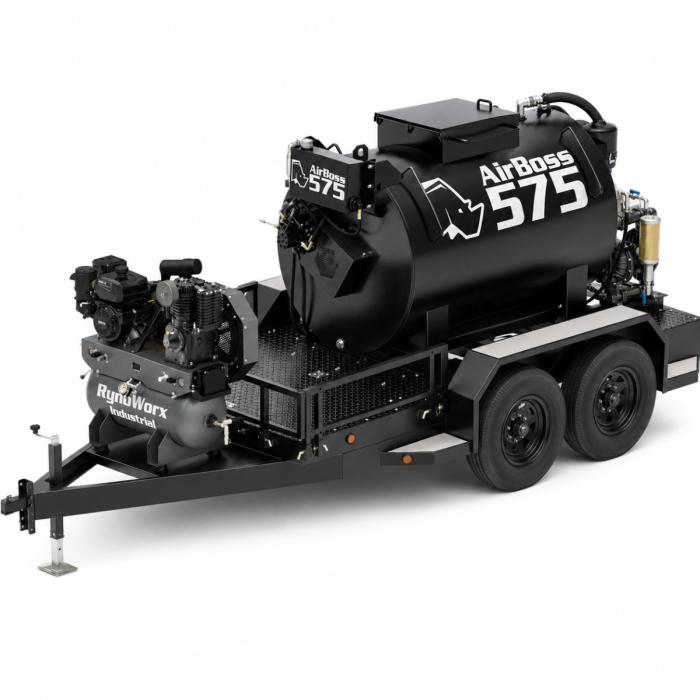

AirBoss 575 Gallon Trailer Mounted Gold
The AirBoss 575 Gallon Trailer-Mounted Sealcoat System is your mobile solution for fast, powerful sealcoating. With a 17 CFM compressor, hydraulic agitation, and rugged Weberlane trailer build, this machine is ready to roll onto any mid-sized job site.
Ships in 7 to 12 Business Days | Call for Shipping Quote
Financing Available. Fast Approvals. Apply Now!
- Air-operated sealcoating
- 575 gallon capacity
- 30% more airflow than competitors
Availability: In stock
AirBoss 575 Trailer Mounted Gold: Compact, Tough, Ready to Roll
The AirBoss 575 Gallon Trailer Mounted Gold is an everyday earner: easy to tow, quick to stage, and strong enough to keep a clean fan across typical lot work. Simple controls and hydraulic agitation mean fewer things to go wrong and more profit per shift.
Key Features
- AirBoss 575 Gold system: 579 US gal actual, 2" AODD pump, power agitated tank.
- 17 CFM @ 125 psi compressor.
- Weberlane trailer: 15,600 lb GVWR, twin 7K spring axles.
- Standard Deck: 55" x 67" Steel Checker Plate
- Deck rails, steps, storage, and 6 tie-downs.
AirBoss Systems: Trusted by Contractors
Why Contractors Choose This Model
- Same tank and pump as Platinum with value air (17 CFM).
- FRL standard; easy-access steps and wide fenders.
- Crews that want full trailer kit and safe tie-downs included.
| Model | |
|---|---|
| System | RynoWorx AirBoss 575 Gold (Trailer) |
| Dimensions and Capacity | |
| Spray System Dimensions | 108 in x 56 in x 60 in |
| Compressor Dimensions | 51 in x 28 in x 44 in |
| Overall Trailer Package Dimensions | 244 in x 88 in x 94 in |
| Tank Dimensions | 48.5 in x 73.5 in |
| Actual Tank Capacity | 579 US gal |
| Weights | |
| Empty System Weight (Trailer) | 2,350 lb |
| Sealer Weight (Filled, approx.) | +5,790 lb |
| Loaded System Weight (Trailer) | 8,140 lb |
| Pump, Hose, and Agitation | |
| Pump | 2 in AODD |
| Pump Brand | AirBoss |
| Filter Pot | 3 gal |
| Adjustable Surge Tank | Yes |
| Full Sweep Agitation | Yes |
| Hydraulic Powered Agitation | Yes |
| Agitation Shaft | 1.57 in |
| Spray Hose | 100 ft |
| Spray Wand | 5 ft |
| Hose Reel | Yes |
| Powered Hose Reel | No |
| Quick Connect Air Hose | 50 ft |
| Compressor and Engine | |
| Compressor Pump Model | 1105 |
| Compressor Output | 17 CFM @ 125 psi |
| Compressor PSI (Working / Max) | 120 / 175 |
| Compressor Tank | 30 gal |
| Compressor Pump Brand | RW Industrial |
| Compressor Electric Start | Yes |
| Engine | Kohler CH440, 429 cc, 14 hp |
| Trailer Features and Inclusions | |
| GVWR | 15,600 lb |
| Safety Break-Away System and Chains | Yes |
| Axle Capacity | 2 x 7,000 lb |
| Spring Axles | Yes |
| LED Lights | Yes |
| Adjustable Coupler | Yes |
| Hitch Size | 2-5/16 in |
| # of Wheels | 4 |
| Wheel Size | 16 in, 8 x 6.5 |
| Tire Size | ST 235/85R16 |
| Electric Brakes | Yes |
| Emergency Breakaway Safety System | Yes |
| Water, Deck, and Loading | |
| Water Kit (Tank / Pump) | No |
| Water Hose | No |
| Brush Box | No |
| Tool Storage | No |
| Metal Deck | Yes |
| Deck Size | Standard 55 in x 67 in Steel Checker Plate Deck |
| Deck Rails | Yes |
| Easy Access Deck Steps | Yes |
| Deck Tie Downs | 6 |
| Rear Hitch Receiver | Yes |
| Extra Wide Fenders | Yes |
| Ramp | No |
| Spray Wand Holder with Drip Catch | No |
0
5 stars
0% (0)
4 stars
0% (0)
3 stars
0% (0)
2 stars
0% (0)
1 star
0% (0)
Share your thoughts with other customers
Top customer reviews
No reviews
Here's a quick guide on how to winterize your AirBoss system: Winterizing an AirBoss Diaphragm Pump (PDF) .
