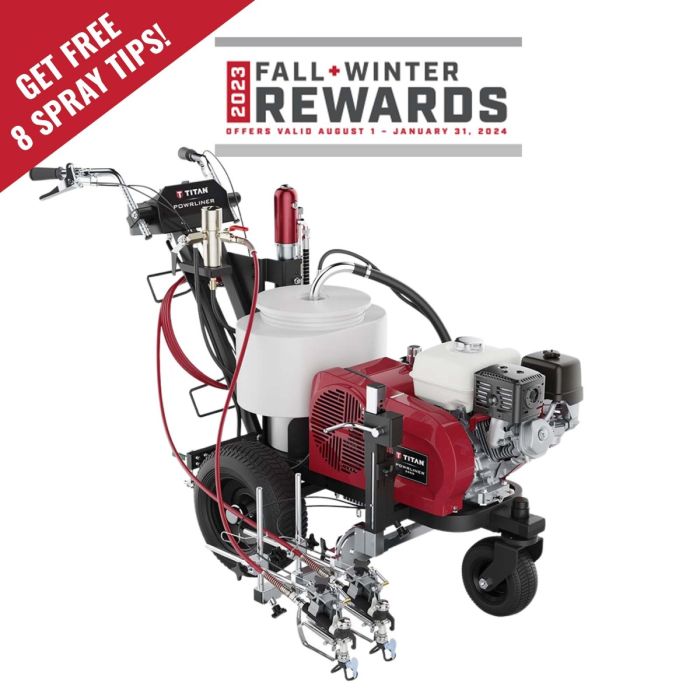

The PowrLiner 8955 is the ultimate line striper for large striping jobs.
With a 6.5 HP Honda engine, a PowrCenter™ that gives you controls and storage compartments within arm's reach, 12-gallon paint hopper, and 2-gun kit, you can work the biggest projects without stopping.
Compatible with water-based paint and oil-based paint.
The PowrLiner 8955 for the line striping jobs needing the most power and output!
Striping large parking lots, airports, and professional athletic fields? The PowrLiner 8955 provides all the power and line striping output, with new features like the Titan PowrCenter™ and the Titan SmartArm™. These new features give you more operating efficiency and ease in use.
You should never add water to paint. This is ready to go with a fresh five gallon pail. If the parking surface is bumpy, take some of the paint out before you start so you don't hit a bump and spill.
With a new Titan machine, it’s a good idea to flush the entire system and gun with mineral spirits before using it. If using latex/waterborne paint, flush with soap/water before you pour paint into the 5 gallon pail.
Yes, this machine can work with both Oil-Based Traffic Paint and Water-Based (Latex) Paint.
| Titan Model Number | 0290054 |
| Maximum Tip Size (1-gun Configuration) | 0.052"-0.054" |
| Maximum Tip Size (2-gun Configuration) | 0.038" |
| Maximum Paint Output | 2.5 GPM (10.68 lpm) |
| Maximum Spraying Speed* | 752 linear feet (229 m) per minute |
| Possible Width of Lines | 2" - 24" (5 cm - 60 cm) |
| Maximum Operating Pressure | 3300 PSI (22.8 MPa) |
| Maximum Length of Hose | 300' (91.4 m) |
| Powered By | Honda GX200 (6.5hp) with Low Oil Alert (Electric Start) |
| Pump Drive | Hydraulic |
| Electrical System | 12 W |
| Paint Outlet Filter - Element | 60 mesh |
| Paint Outlet Filter - Filter Area | 18 in2 (116 cm2) |
| Gun Model (Airless) | S-3 |
| Hose Model (Airless) | 316-505, measuring 1/4" x 50' (15.2 m) |
| Airless Striping Tips (Supplied per Gun) | 1 TR1™ Line Striping Tip (model number 697-419), 4" Line by .019" orifice |
| Weight - Unit | 370 lbs |
| Shipping Weight | 405 lbs |
| Dimensions - Unit | 41" High x 31" Wide x 60" Long 104 cm High x 79 cm Wide x 152 cm L |
| Dimensions - Unit As It Ships | 49" High x 33" Wide x 64" Long 125 cm High x 84 cm High x 163 cm Long |
| Coatings Compatibility reversible tip | Works with almost all advanced, low-VOC (volatile organic compounds) waterborne traffic paints |
| Common Applications | Works with almost all advanced, low-VOC (volatile organic compounds) waterborne traffic paints |
| Notes | *Based on 4" (10 cm) line @ 15 mil wet film thickness and 320 linear feet per gallon coverage. Need help with your Titan sprayer? Just call 1-800-526-5362 opt: 2. |
Download the PowrLiner 8955 Owner's Manual
