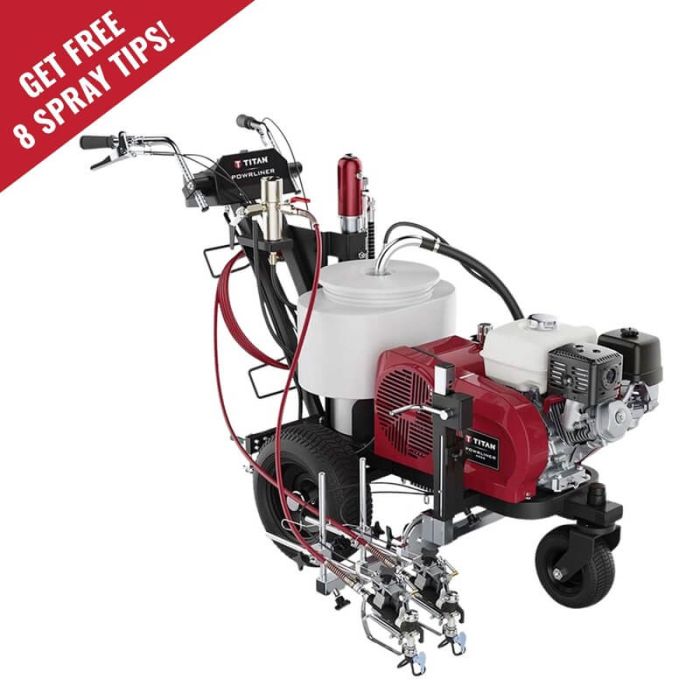

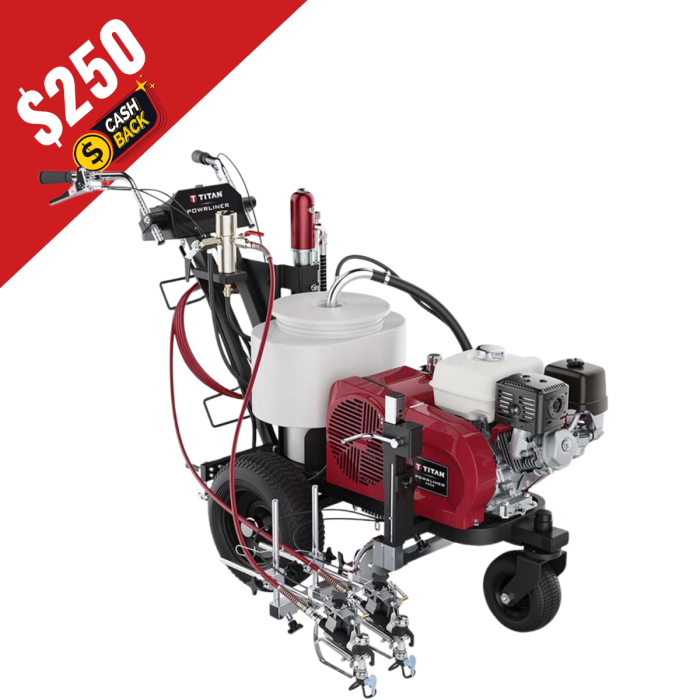

The Titan PowrLiner 4955 is a professional-contractor grade line striper. It includes a PowrCenter™ for controls and gauges right at your hands, SmartArm™ system for easy spraygun adjustments, as well as deadlock handlebars for user comfort, and a new swing-back stem design for greater maneuverability of the striper!
The new PowrLiner 4955 is built to work full-time on parking lots and athletic fields, making it a good choice for contractors doing medium and large-size line striping projects day-in and day-out.
You should never add water to paint. This is ready to go with a fresh five gallon pail. If the parking surface is bumpy, take some of the paint out before you start so you don't hit a bump and spill.
With a new Titan machine, it’s a good idea to flush the entire system and gun with mineral spirits before using it. If using latex/waterborne paint, flush with soap/water before you pour paint into the 5 gallon pail.
| Titan Model Number | 0290052 |
| Maximum Tip Size (1-gun Configuration) | 0.036" |
| Maximum Tip Size (2-gun Configuration) | 0.028" |
| Maximum Paint Output | 1.25 GPM |
| Maximum Spraying Speed* | 511 linear feet (155 m) per minute |
| Possible Width of Lines | 2" - 24" (5 cm - 60 cm) |
| Maximum Operating Pressure | 3300 PSI (22.8 MPa) |
| Maximum Length of Hose | 300' (91.4 m) |
| Powered By | Honda GX120 (4hp) with Low Oil Alert (Pull Start) |
| Pump Drive | Hydraulic |
| Paint Outlet Filter - Element | 60 mesh |
| Paint Outlet Filter - Filter Area | 18 in2 (116 cm2) |
| Gun Model (Airless) | S-3 |
| Hose Model (Airless) | 316-505, measuring 1/4" x 50' (15.2 m) |
| Airless Striping Tips (Supplied per Gun) | 1 TR1™ Line Striping Tip (model number 697-419), 4" Line by .019" orifice |
| Weight - Unit | 370 lbs |
| Shipping Weight | 405 lbs |
| Dimensions - Unit | 41" High x 31" Wide x 60" Long 104 cm High x 79 cm Wide x 152 cm L |
| Dimensions - Unit As It Ships | 49" High x 33" Wide x 64" Long 125 cm High x 84 cm High x 163 cm Long |
| Coatings Compatibility reversible tip | Works with almost all advanced, low-VOC (volatile organic compounds) waterborne traffic paints |
| Common Applications | Full-time duty parking line striping and athletic line striping |
| Notes | *Based on 4" (10 cm) line @ 15 mil wet film thickness and 320 linear feet per gallon coverage. Need help with your Titan sprayer? Just call 1-800-526-5362 opt: 2. |
