Preformed Thermoplastic Straight Arrow (2 pcs, 9'10" x 3'3", Color Options)
- 2 pieces per pack for matching lane markings
- No special equipment needed, install with a torch
- Optional skid resistance and glass beads for safety
FREE SHIPPINGAvailability: In stock
Have questions? We’re here to help!
Speak to an Asphalt Expert!
Preformed Thermoplastic Straight Arrow Overview

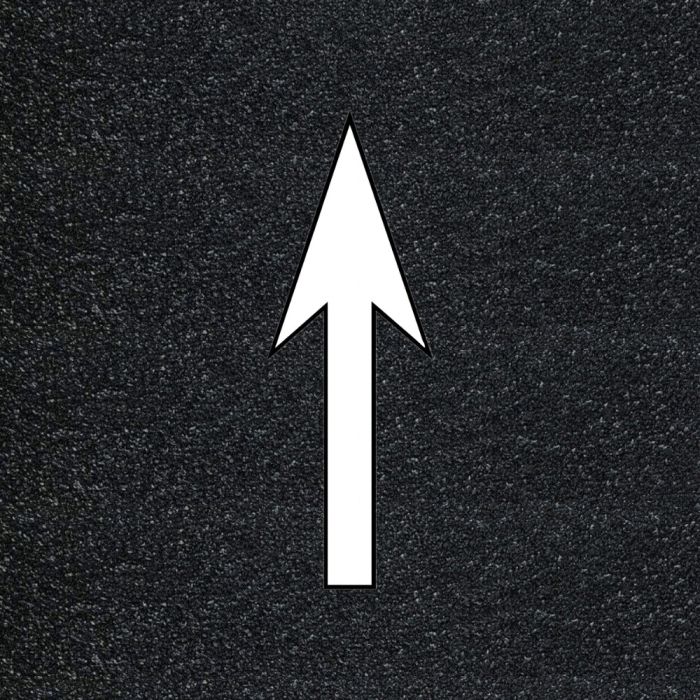

Mark traffic lanes quickly and consistently with these white preformed thermoplastic straight arrows. Each pack includes two FHWA standard arrows measuring 9'10" x 3'3", factory cut from Tuff-Mark preformed alkyd thermoplastic sheet for clean, professional results on asphalt and properly prepared concrete.
Tuff-Mark material is supplied in pre-cut shapes that are easy to lay out and bond using a propane heat torch. You get the durability of hot-applied thermoplastic in a convenient preformed arrow marking that can be opened to traffic shortly after installation.
Key Features and Benefits
- Factory-cut preformed thermoplastic straight arrow in FHWA standard size for clear lane guidance.
- White, highly visible pavement arrow that stands out in parking lots, drive lanes, and roadways.
- Available as standard Tuff-Mark or Tuff-Grip skid-resistant surface for added traction in turning and braking areas.
- Optional surface glass beads to boost night visibility and long-term retroreflectivity.
- No preheat required for many asphalt applications when installed according to the Tuff-Mark application procedures.
- Preformed sheet construction helps ensure consistent layout and reduces installation time compared to hand-sprayed arrows.
How to Use These Thermoplastic Arrows
- 1. Clean the pavement, removing dirt, dust, oil, loose sealer, and moisture. Repair major cracks or potholes first.
- 2. Lay out the arrow sections in the correct orientation and check alignment from a driver’s point of view.
- 3. Heat the material evenly with a propane torch, moving in a steady pattern until the arrow fully melts and bonds to the surface and all edges are sealed.
- 4. If you selected the glass bead option, ensure the beads are properly embedded while the material is molten.
- 5. Allow the marking to cool before opening the lane to traffic.
Recommended Uses
- Entrance and exit lanes in commercial parking lots.
- Drive lanes in shopping centers, schools, hospitals, and industrial yards.
- Low-speed roadways, private roads, and internal plant roads.
- Airports and facilities that need durable directional pavement markings.
Storage and Handling
- Store flat in a cool, dry, well-ventilated area away from direct sunlight and heat sources.
- Keep material clean and protected from moisture, dust, and solvents prior to installation.
- Follow the Safety Data Sheet for handling, torch operation, and personal protective equipment.
Why Choose Tuff-Mark Straight Arrows
Tuff-Mark and Tuff-Mark with Tuff-Grip are engineered as preformed thermoplastic pavement markings that provide long-lasting color, adhesion, and retroreflectivity when installed correctly. The factory-cut FHWA straight arrow saves layout time and helps contractors deliver uniform, professional results on every project.
Select the skid-resistant Tuff-Grip finish for areas where vehicles brake, turn, or stop, and add glass beads for enhanced night-time visibility. Combine these arrows with your line striping machine and traffic paints to complete an efficient, easy-to-follow traffic flow.
Have questions? We’re here to help!
Speak to an Asphalt Expert!
| Product type | Preformed alkyd thermoplastic pavement marking arrow |
|---|---|
| System | Tuff-Mark or Tuff-Mark with Tuff-Grip |
| Arrow style | FHWA standard straight arrow |
| Color | White pavement arrow |
| Size | 9'10" x 3'3" |
| Pieces per pack | 2 arrows |
| Surface finish options | Standard Tuff-Mark smooth surface or Tuff-Grip skid-resistant surface |
| Glass bead option | Available with or without factory-applied surface glass beads |
| Recommended substrates | New asphalt, aged asphalt, and concrete when properly prepared |
| Minimum application temperature | No minimum temperature requirement; surface must be clean, dry, and moisture free |
| Application method | Position preformed thermoplastic straight arrow and heat to fusion with a propane torch |
| Traffic reopening | Allow material to cool and bond, then open to traffic after the bond has been checked |
| Storage | Store flat in a cool, dry place; protect from moisture and direct sun; approximate shelf life one year in original packaging |
