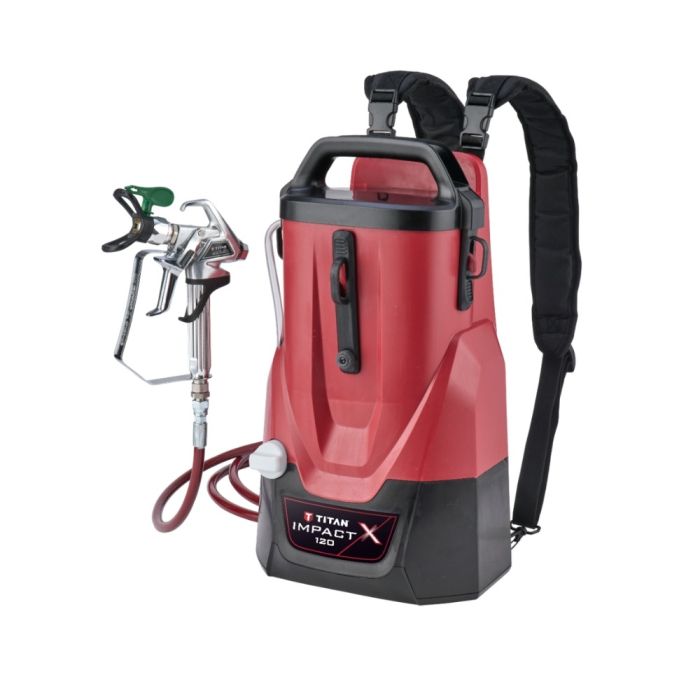

Titan Impact X 120 18V Backpack Sprayer
The Titan Impact X 120 18V Backpack Sprayer is the go-to add-on for line striping crews who want to keep their line striper loaded and knock out stencils, arrows, and touch-ups fast. Run it in backpack, side-carry, or stationary mode, and stay moving with a 1.25-gallon hopper and up to 50 ft hose capability.
- Spray stencils fast without swapping stripe colors
- Backpack, side-carry, or stationary for tight layouts
- 1.25-gal hopper, supports up to 50 ft hose reach
Have questions? We’re here to help!
Titan Impact X 120 18V Battery Sprayer
Built for punch-list work, touch-ups, doors, trim, and small areas where dragging cords and a full-size rig wastes time. Run it in backpack, side-carry, or stationary mode, and keep moving with a 1.25-gallon tank and up to 50 feet of hose capability.
If you want airless results on small jobs without the setup headache, this unit is designed to get you spraying fast, keep your pattern clean, and cut down on stop-and-go refills.
Overview & Use Cases
This unit is a cordless airless paint sprayer built for clean finishes and mobile work. It is a solid fit when you need professional spray quality but you do not want to haul a full cart system into finished spaces.
- Touch-ups and punch lists where setup time kills profit
- Doors, trim, cabinets, railings, and small room turnarounds
- Jobsites where cords, noise, and fumes are a problem
- Work that needs reach, up to 50 ft hose support
Items included: RX-80 gun, 517 HEA tip, 312 fine finish tip, 9' airless hose, two 4Ah batteries, battery charger, grounding cable.
Key Features & Benefits
- Backpack, side-carry, or stationary setup for tight spaces and fast moves
- 1.25-gallon tank means fewer refills, less stopping mid-job
- 1600 psi max pressure for controlled spraying and consistent patterns
- Runs up to 50 ft of hose so you can reach without relocating every pass
- Built-in hose management and on-board storage helps keep the setup clean
Application Instructions
Follow the quick-start workflow and test your spray pattern on scrap before you hit finished surfaces. Keep the unit supplied with material, and re-prime after refills.
- 1. Set PRIME/SPRAY to PRIME, connect hose and gun, then install a charged battery.
- 2. Prime the system until material flows consistently.
- 3. Switch to SPRAY, set speed as needed, and test the pattern.
- 4. Spray with steady passes, consistent distance, and overlap your passes.
- 5. If the tip clogs, lock the trigger, reverse the tip, clear into a waste container, then rotate back to spray.
Pro tip: If you are guessing on tip size or setup, get it right before you start. Pair this sprayer with the correct tip and guard combo from line painting accessories, tips, guards, filters, and parts.
Recommended Uses
Designed for common architectural coatings where you want a clean finish and quick turnaround.
- Water-based and oil-based paints and primers
- Stains and preservatives
- Other nonabrasive materials per coating manufacturer guidance
Do not use for textured materials, block filler, industrial enamels, asphalt sealer, or materials containing halogenated hydrocarbons. Verify coating compatibility before loading the tank.
Storage & Handling
- Clean the unit right after use to prevent dried material and clogs
- Use warm soapy water for latex, mineral spirits for oil-based coatings
- Keep battery terminals dry during cleanup
- Store indoors, upright, and ready for the next job
If you want fewer start-up issues next time, clean it the same day, then check wear parts and replace as needed before the next spray day.
Why Choose Titan Impact X 120 18V Battery Sprayer
This sprayer is for crews who make money on speed and clean finishes, not on setup time. It is built for small jobs where a full-size rig is overkill, and where cords slow you down. If your goal is to show up, spray clean, and move on to the next stop with fewer headaches, this is the right style of unit.
Build the complete setup now so you are not stuck mid-job. Add the tips, guards, hoses, and small replacement parts you need, then get it on the schedule.
Warranty: Impact X 120 sprayer is backed by Titan WearGuard for manufacturer defects, 2 years. Battery coverage is 3 years, and charger coverage is 5 years. For details, call 1-866-399-5562.
Stencil Spraying Made Easy for Line Striping Crews
When you are striping all day, flushing your line striper or swapping colors just to spray a handicap symbol is a time killer. The Titan Impact X 120 18V backpack sprayer lets you keep your striper set up for stripe work, then handle stencils with a separate, ready-to-go airless sprayer.
Pair it with your parking lot stencils, keep your paint organized, and stop burning minutes on changeovers.
Key Features & Benefits
- Dedicated stencil sprayer: keep your line striper loaded for striping
- 3 work modes: backpack, side-carry, or stationary depending on the layout
- 1.25-gallon hopper: fewer refills while you run symbols and legends
- Up to 50 ft hose support: reach more marks without dragging the unit
- 1600 psi max: controlled spray and consistent patterns
- Ready to spray: includes RX-80 gun, 517 HEA tip, 312 fine finish tip, 9 ft hose
Stock up on line striping accessories, tips, and guards so you are not stuck mid-job.
How to Use
- 1. Set PRIME/SPRAY to PRIME, connect hose and gun, install a charged battery.
- 2. Prime until material flows consistently.
- 3. Switch to SPRAY, set speed as needed, then test your pattern on scrap.
- 4. For stencils, keep your passes steady and control your distance for clean edges.
- 5. If the tip clogs, lock the trigger, reverse the tip to clear into a waste container, then rotate back to spray.
For best results, match your paint and tip to the job, and test before you hit the stencil.
Recommended Uses
- Primary use: spraying parking lot stencils, symbols, arrows, and touch-ups
- Fast punch-list work where setup time kills profit
- Small areas where cords and a full-size rig are a hassle
Material capability includes oil-based and latex paints, primers, stains, preservatives, and other nonabrasive materials. Do not use with textured materials, block filler, industrial enamels, asphalt sealer, or materials containing halogenated hydrocarbons. Verify coating compatibility before loading.
Storage & Handling
- Clean right after use to prevent dried material and clogs.
- Use warm soapy water for latex, mineral spirits for oil-based coatings.
- Keep battery terminals dry during cleanup.
- Store indoors and upright, ready for the next spray day.
Clean it the same day and you will save yourself start-up headaches tomorrow.
Why Choose Titan Impact X 120
This is the simple add-on that makes stencil work smoother. You keep your line striper focused on striping, and you use this backpack sprayer for stencils and touch-ups, without wasting time on paint swaps and flush-outs. If your goal is faster setups and cleaner small-job spray work, this unit fits the workflow.
Warranty: WearGuard coverage for manufacturer defects, 2 years (sprayer). Battery, 3 years. Charger, 5 years. For details, call 1-866-399-5562.
Have questions? We’re here to help!
| Model | 2441253A |
| Sprayer type | High efficiency airless (HEA) |
| Operating configurations | Backpack, side-carry, stationary |
| Max operating pressure | 1600 psi (11.1 MPa) |
| Flow rate | 0.24 GPM (0.91 LPM) |
| Max delivery | 0.31 GPM (1.17 LPM) |
| Tank capacity | 1.25 gal (4.7 L) |
| Tip support | 0.008" to 0.017" |
| Max tip size | 0.017" |
| Max hose length | 50 ft |
| Included hose length | 9 ft |
| Power requirement | 18V battery pack, 2–8 Ah (4 Ah standard) |
| Battery platform | AMPShare, powered by Bosch |
| Battery (manual) | BAT612 (2443401) |
| Charger (manual) | GAL18V-40 (2456126) |
| Charge time (manual) | Approximately 45 minutes to full charge (fully depleted battery) |
| Charge time (brochure) | 32 minutes to ~80%; 50 minutes to 100% |
| Weight | 8.2 lb (3.72 kg) |
| Material capability | Oil-based and latex paints, primers, stains, preservatives, other nonabrasive materials |
| Do not use with | Textured materials, block filler, industrial enamels, asphalt sealer, materials containing halogenated hydrocarbons |
| Safety / compliance | Trigger lock and pressure diffuser; tip safety guard; PRIME/SPRAY knob; UL 1450; CSA C22.2 No 68 |
| Items included | RX-80 gun, 517 HEA tip, 312 fine finish tip, 9' airless hose, two 4Ah batteries, battery charger, grounding cable |
| Warranty | WearGuard coverage for manufacturer defects, 2 years (sprayer). Battery, 3 years. Charger, 5 years. For details, call 1-866-399-5562. |
