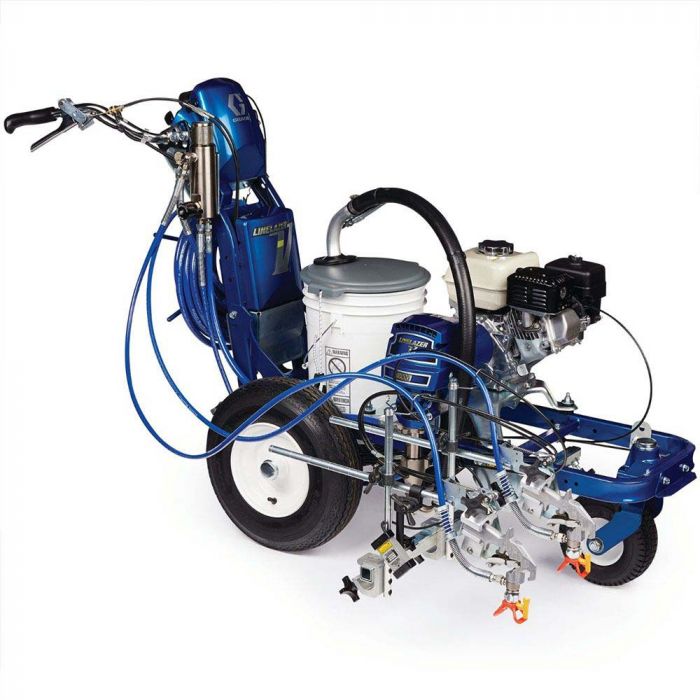

Graco LineLazer V 3900 AutoLayout Series – Precision & Efficiency for Line Striping
Auto-Layout II eliminates manual chalking, while SmartControl ensures smooth and accurate striping. Equipped with a reliable Honda GX engine and customizable gun options, it delivers crisp, professional lines on parking lots, roadways, and sports fields.
- Faster Layouts
- High-Pressure Performance
- Ride-On Compatible
FREE SHIPPINGAvailability: In stock
Key Features & Benefits

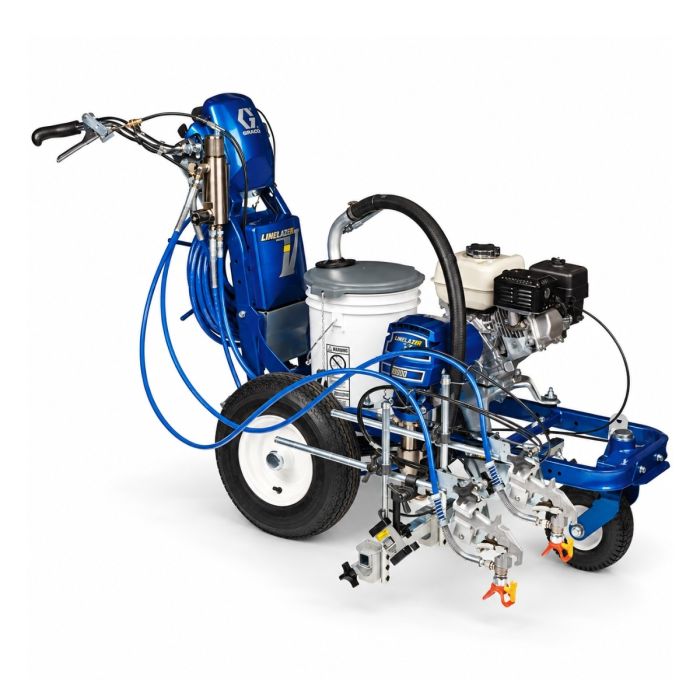

The Graco LineLazer V 3900 AutoLayout Series is a high-performance line striping machine designed for contractors, property managers, and municipalities. With advanced automation and precision control, this machine simplifies complex layout tasks while delivering crisp, clean lines.
Auto-Layout II Technology eliminates the need for manual chalking, cutting setup time significantly. The SmartControl System maintains consistent paint flow, preventing pressure fluctuations and ensuring even application. The LiveLook Display allows users to track paint usage, line thickness, and job progress in real time.
Gun configurations offer flexibility for different striping needs:
- 1 Automatic + 1 Manual Gun – Provides control and adaptability
- Dual Automatic Guns – Enables efficient, high-volume striping
- Dual Automatic Guns + LazerGuide 2000 – Enhances accuracy with laser precision
For larger projects, convert this walk-behind line striper into a ride-on system using the Titan LazyLiner Elite or the LineDriver HD Ride-On System. These attachments increase efficiency by reducing operator fatigue and allowing for extended use over large areas.
Application Instructions
- 1. Setup & Calibration: Adjust gun height and positioning to match project needs. SmartControl ensures accurate paint flow and line widths.
- 2. Auto-Layout Mode: Activate Auto-Layout II to pre-mark stall sizes and angles without manual measuring.
- 3. Precision Striping: Use SmartControl for smooth, even application while monitoring real-time performance via the LiveLook Display.
- 4. Job Completion & Data Logging: The J-Log System tracks paint usage and distance covered, allowing for USB data export when client verification is needed.
Pair this line striping equipment with high-quality Parking Line Paint and Parking Lot Stencils to ensure long-lasting, professional-looking markings.
Recommended Uses
- Parking Lots – Delivers professional-grade lines with minimal overspray, ideal for commercial properties.
- Roadways & Highways – The dual-gun setup allows for efficient solid and skip-line striping
- Athletic Fields – Ensures straight, precise field markings with laser-guided accuracy.
- Industrial & Warehouse Markings – Suitable for safety markings, loading zones, and hazard indicators.
For expert guidance on best practices, check out our Handy Guide to Parking Lot Line Striping.
Storage & Handling
- Cleaning: Flush the system with the recommended solvent after each use to prevent clogging.
- Storage: Store in a dry location, ensuring hoses are drained and excess paint is removed before long-term storage.
- Maintenance: Regularly check oil levels, gun alignment, and hose condition for optimal performance.
Why Choose the Graco LineLazer V 3900 AutoLayout Series?
The Graco LineLazer V 3900 AutoLayout Series is built for professionals who need efficiency, precision, and durability in their line striping equipment. This advanced line striper is designed to handle high-volume projects with ease, making it an essential tool for contractors and property managers.
- Time & Labor Savings – Auto-Layout II speeds up layout work, reducing setup time and labor costs.
- Precision & Consistency – SmartControl and LazerGuide options ensure crisp, professional-grade lines.
- Durability & Power – The Honda GX engine and 3300 PSI maximum pressure provide reliable, high-performance striping.
- Enhanced Productivity – The LiveLook Display and J-Log System track material usage, helping contractors optimize efficiency.
- Ride-On Compatibility – Easily upgrade with a ride-on system for larger jobs, minimizing operator fatigue and maximizing output.
When combined with premium striping accessories like Parking Line Paint and Parking Lot Stencils, this machine delivers high-visibility, long-lasting pavement markings that meet professional standards.
| Compatible Material | Road Marking Paint |
| Compatible Surfaces | Pavement, Turf |
| SKU | 17H453 |
| Engine | Honda GX120 |
| Features | Auto-Layout II, Versatile Gun Attachment Options (automatic/manual combination, dual automatic, or dual automatic with LazerGuide 2000), J-Log Data Logging System, On-Board Power |
| Fuel Tank Capacity | 0.66 gallons |
| Gun Activation | Dual-mode (Automatic and Manual available) |
| Includes | LazerGuide (1700 or 2000 option available), Flex Plus Gun(s) (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8" x 50' BlueMax II Airless Hose, 3/8" x 3' BlueMax II Airless Whip Hose, TSL, 4 oz |
| Maximum Flow Rate | 1.25 GPM |
| Maximum Sound Pressure Level | 86.5 db(A) |
| Maximum Tip Size | 0.025" |
| Maximum Working Pressure | 3300 psi |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 2 (configurable as one automatic + one manual, or dual automatic) |
| Number of Pumps | 1 |
| Overall Height | 44.5" |
| Overall Length | 68.75" |
| Overall Width | 34.25" |
| Power Rating | 4 HP | 2980 W | 2.98 kW |
| Power Source | Gas |
| Pump Type | Endurance |
| Series | 3900 |
| Type | Walk-Behind Line Striper |
| Weight | 240 lbs |
| Gun Attachment Options | Option 1: Automatic/manual combination, Option 2: Dual automatic guns, Option 3: Dual automatic guns with LazerGuide 2000 |
