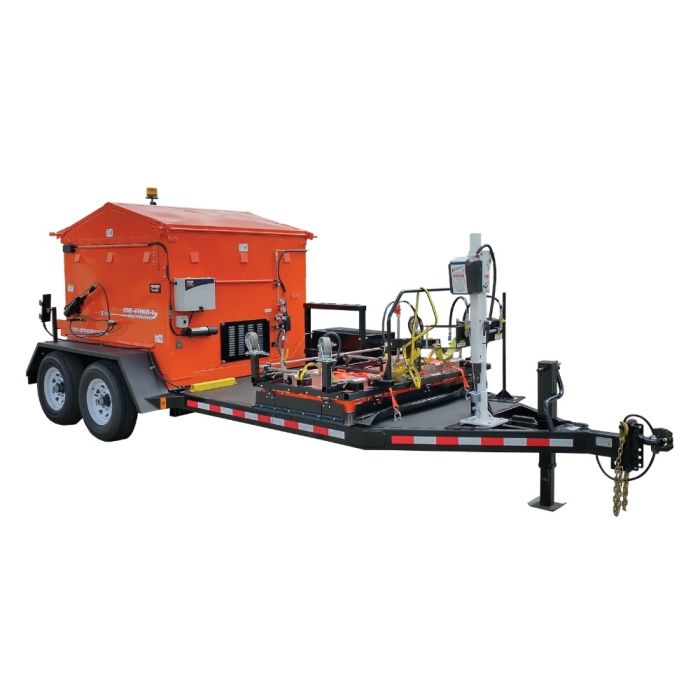

4 Ton Trailer Mounted Reclaimer with Infrared Heater
Add AK Make it a Biz Success Pack - Free With Purchase
Call To Purchase
The 4 Ton Asphalt Reclaimer with Infrared Heater is built for contractors, cities, and DOT crews that handle serious patching volume. It hauls up to 4 tons of mix, keeps material hot for up to 48 hours with clean propane infrared heat, and helps you rely less on cold patch while crews stay productive all week.
Please call for a shipping quote.
Available in 6 to 8 weeks.
- High-capacity asphalt reclaimer built for big patch jobs
- No diesel or oil jackets, waste less mix, simpler upkeep
- PLC-controlled infrared heat holds temp up to 48 hours
Availability: In stock
Have questions? We’re here to help!
Speak to an Asphalt Expert!
4 Ton Trailer Mounted Reclaimer with Infrared Heater
The 4 Ton Asphalt Reclaimer with Infrared Heater is built for full-scale patching on busy routes. This trailer-mounted reclaimer keeps hot mix workable longer than diesel boxes, whether you haul fresh plant mix or reclaim older material. In many areas, you can travel with the flameless infrared system running so your crew stays productive between jobs.
Overview & Use Cases
Use this heavy-duty unit to:
- Haul more mix per trip and cover more patches per shift
- Keep virgin asphalt at an optimal working temperature
- Cut your dependence on cold patch that fails early
- Reduce fuel and material waste across your maintenance program
With its large hopper, dual infrared heat system, and auto-locking chute, this trailer-mounted reclaimer is a go-to choice when you need volume without sacrificing quality on the finished repair.
Key Features & Benefits
- High BTU infrared heaters that deliver 70,000 BTUs of controlled propane heat
- PLC control system that can hold temperature for up to 48 hours
- Infrared efficiency with clean burn, lower emissions, and no diesel maintenance
- Heavy-duty dual hopper design that reclaims leftover asphalt with even heating
- Venturi system with no blowers required, which cuts out extra moving parts
- Auto lock unloading doors that stay upright to prevent accidental closure
- Reinforced trailer frame built with 6" x 2" tubing and torsion axles for stability
Because the infrared system works as a powerful asphalt reheater, you make better use of each load instead of dumping cold or unusable mix at the end of the day.
How to Use the 4 Ton Reclaimer
You will need:
- One 100 lb vapor propane tank
- Asphalt rake and compactor
- Basic PPE such as gloves, goggles, and heat protection
Steps:
- 1. Load fresh virgin asphalt mix into the hopper or add reclaimed chunks that need reheating.
- 2. Set the target temperature, usually around 300°F, on the PLC control.
- 3. Once the load is at temperature, open the chute and unload onto the prepared patch area.
- 4. Rake the material level, compact as needed, then move to the next location.
Storage & Maintenance
- Purge propane from the system after use
- Clean the hopper every day so material does not build up
- Inspect the ignition system and PLC quarterly
- Replace the heater cartridge after 800 to 1,000 hours or as needed
Why Choose the 4 Ton Infrared Asphalt Reclaimer?
If you are managing a full crew or city-wide patching program, this trailer-mounted reclaimer and asphalt reheater lets you haul more mix, reclaim more leftover material, and cut downtime. Compared to diesel-powered units, you get fewer emissions, lower fuel costs, and minimal maintenance, all while delivering more usable asphalt per load.
Reclaim smarter and work faster with a high-capacity asphalt reheater that keeps your crews productive on every route.
Hotbox Reclaimer Specifications by Size
| General Specifications | 2-Ton | 3-Ton | 4-Ton |
|---|---|---|---|
| Overall Length (A) | 176-3/8" | 196-3/4" | 203-5/8" |
| Overall Width (B) | 98-3/4" | 98-3/4" | 98-3/4" |
| Deck Height (C) | 21-5/8" | 22-5/8" | 22-5/8" |
| Hotbox Chute Height (D) | 33-1/2" | 33-3/4" | 36-5/8" |
| Overall Height (E) | 76-1/4" | 81-13/16" | 90" |
| Channel Height (F) | 21-1/8" | 24" | 21" |
| Hotbox Shovel Width (G) | 60" | 59-7/8" | 59-7/8" |
| Hotbox Shovel Length (H) | 40" | 58-7/8" | 64-7/8" |
| Trailer Deck Space Length (I) | 48" | 65-1/2" | 58-1/8" |
| Trailer Deck/Hopper Width (J) | 72-5/8" | 73-1/4" | 73-1/4" |
| Useable Deck Space (K) | 20 sq. ft. | 30 sq. ft. | 25 sq. ft. |
| Shovel Opening Width (L) | 19-3/4" | 19-3/4" | 19-3/4" |
| Shovel Opening Height (M) | 13" | 13" | 13" |
| Lid Opening (N) | 91-5/8" | 102-1/4" | 116" |
| Lid Opening (O) | 72-3/4" | 94-1/2" | 104-3/8" |
Trailer Layout Reference
| Other Specifications | 2-Ton | 3-Ton | 4-Ton |
|---|---|---|---|
| TRAILER | |||
| Empty Weight | 2,950 lbs | 3,500 lbs | 4,400 lbs |
| Gross Weight | 6,950 lbs | 9,500 lbs | 12,400 lbs |
| Torsion Flexride Axles | (2) 5,200 lbs | (2) 5,200 lbs | (2) 7,000 lbs |
| Wheels & Tires | ST225/75 R15 LRC 6 PLY | ST225/75 R15 LRC 6 PLY | ST235/80 R16 LRC 6 PLY |
| HOPPER | |||
| Infrared Radiant Heaters | 70,000 BTU | 70,000 BTU | 70,000 BTU |
| Hotbox Capacity | 2.4 tons | 3.4 tons | 4.4 tons |
| Insulation | 2" | 2" | 2" |
| Inner Wall (SS) | 16 GA | 16 GA | 16 GA |
| Outer Wall (Mild Steel) | 14 GA | 14 GA | 14 GA |
| Hopper Construction | 11 GA | 11 GA | 11 GA |
| LPG 100# Vapour (Fast Fill) | 1 | 1 | 1 |
FAQs
| Questions | Answers |
|---|---|
| How much asphalt can I fit in the 4 Ton reclaimer? | The hopper holds up to 4.4 tons of material—the most in our reclaimer lineup. |
| Can this unit be used in winter? | Yes. Infrared heating keeps asphalt pliable and ready to work, even in cold weather. |
| Does this model require diesel? | No. It runs on propane only, which means fewer emissions and no burner maintenance. |
| How long does it keep asphalt hot? | Up to 48 hours with the PLC-controlled infrared system. |
| Is the trailer DOT-compliant? | Yes. It comes equipped with torsion axles, LED lighting, and sealed 7-pin RV plug. |
Have questions? We’re here to help!
Speak to an Asphalt Expert!
| Capacity | 4.4 Tons |
| Heat Type | Infrared Propane (70,000 BTUs) |
| Fuel | 1 x 100 lb vapor-drawn LPG tank |
| Insulation | 2” walls |
| Inner Wall Material | 16 GA Stainless Steel |
| Outer Wall Material | 14 GA Mild Steel |
| Hopper Floor | 11 GA Mild Steel |
| Ignition | Automatic Spark Ignition |
| PLC Control | Digital with safety shut-off |
| Unloading Doors | Dual 19.75" x 13" with auto-lock |
| Trailer Axles | (2) 7,000 lb Torsion FlexRide |
| Trailer Frame | 6" x 2" Tubular Steel |
| Wheels & Tires | ST235/80 R16 LRC 6 PLY |
| Empty Weight | 4,400 lbs |
| Gross Weight | 12,400 lbs |
