3 Ton Asphalt Infrared Machine & Reclaimer
Add AK Make it a Biz Success Pack - Free With Purchase
Call To Purchase
The 3 Ton Infrared Asphalt Heater and Reclaimer is built for crews who need dependable heat without burning extra fuel. Dual infrared burners and a digital PLC controller keep your mix at the right temperature for up to 48 hours so you can haul fresh material or reclaim leftovers without waste. You get clean propane heat, no diesel, and steady performance on every route.
Please call for a shipping quote.
Available in 6 to 8 weeks.
- Clean propane heat and lower fuel costs
- Reclaims cold chunks into usable hot mix
- Holds temperature up to 48 hours with PLC control
Availability: In stock
Have questions? We’re here to help!
Speak to an Asphalt Expert!

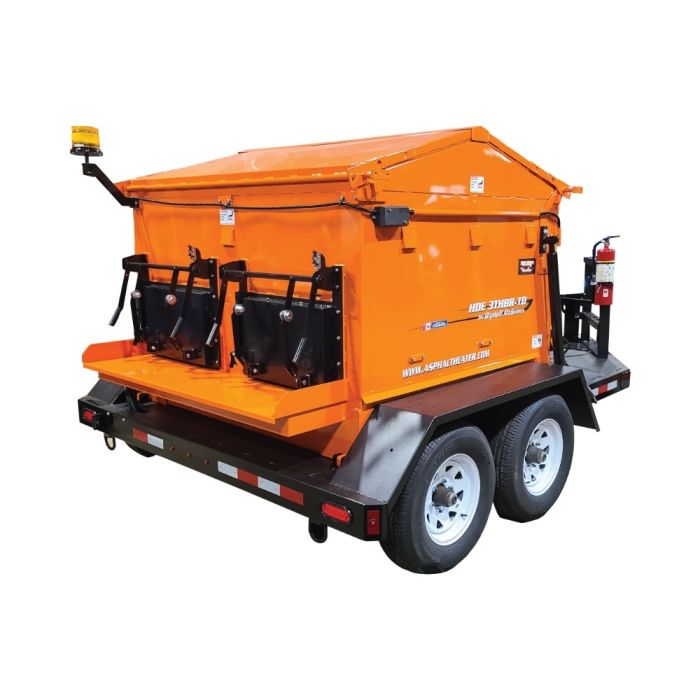

3 Ton Asphalt Infrared Machine & Reclaimer
The 3 Ton Infrared Asphalt Heater and Reclaimer gives your patch crew mid-sized capacity with serious performance. This asphalt infrared machine combines clean propane burners with a digital control system so you can keep mix at working temperature or bring reclaimed material back to life with less fuel and less waste. Thanks to the flameless design, in many areas you can even drive with the unit running, which keeps production moving between stops.
Overview & Use Cases
Built for city crews, school districts, and paving contractors, this unit brings plant level heat control out to the job site. It rehabs old material with infrared heat, holds fresh mix at about 300°F for up to 48 hours, and helps you cut back on cold patch that tends to fail early. You do not need a separate heater or blower because this all-in-one reclaimer handles the job.
Use it to:
- Reclaim old asphalt with consistent flameless infrared heat
- Maintain fresh mix at working temperature over long shifts
- Reduce cold patch use while delivering longer-lasting repairs
If you are comparing an asphalt reclaimer for sale in the 3 ton class, this unit stands out for its mix of capacity, control, and fuel savings.
Key Features & Benefits
This trailer-mounted reclaimer is packed with field-proven features that keep crews efficient:
- Infrared propane burners with 70,000 BTUs of clean, even heat
- Programmable Logic Controller for digital heat control and 48-hour hold
- Automatic spark ignition with built-in safety shut-off
- Dual hopper construction designed for reclaiming cold asphalt
- Venturi system that removes the need for batteries or blowers
- Spring-assisted loading doors for easy access and quick refills
- Auto-locking unloading doors that stay up until you release them
- Rugged trailer build with 6" x 2" steel tubing and torsion axles
With this asphalt infrared machine in your fleet, you keep mix workable longer, waste less tonnage, and avoid the headaches that come with diesel burners.
How to Use the 3 Ton Reclaimer
What you need:
- One or more 100 lb vapor propane tanks
- Asphalt rake and plate compactor
- PPE, including heat-resistant gloves and eye protection
Basic steps:
- 1. Load fresh virgin asphalt mix or reclaimed material into the hopper.
- 2. Set the PLC to your target temperature, typically around 300°F.
- 3. Allow the system to bring the load up to temperature and hold.
- 4. Use the chute to unload, repair the surface, then compact and move on to the next job.
Storage & Maintenance
- Purge propane from the system after use.
- Clean hopper bins daily so material does not build up.
- Inspect the ignition system and PLC at least quarterly.
- Replace the stainless steel heater cartridge every 800–1,000 hours, or as needed based on runtime and inspection.
Why Choose the 3 Ton Infrared Reclaimer?
If you want a low-maintenance way to cut waste and fuel usage, the 3 Ton model is a strong fit. It is built for medium to large asphalt patching routes, holds a true 3 ton volume of asphalt, and helps you save time and mix on every load. For buyers looking at an asphalt reclaimer for sale that offers real control over heat and production, this unit delivers solid ROI on municipal, commercial, and residential work.
Get the job done faster, cleaner, and hotter with a reclaimer that is built to work hard every season.
Hotbox Reclaimer Specifications by Size
| General Specifications | 2-Ton | 3-Ton | 4-Ton |
|---|---|---|---|
| Overall Length (A) | 176-3/8" | 196-3/4" | 203-5/8" |
| Overall Width (B) | 98-3/4" | 98-3/4" | 98-3/4" |
| Deck Height (C) | 21-5/8" | 22-5/8" | 22-5/8" |
| Hotbox Chute Height (D) | 33-1/2" | 33-3/4" | 36-5/8" |
| Overall Height (E) | 76-1/4" | 81-13/16" | 90" |
| Channel Height (F) | 21-1/8" | 24" | 21" |
| Hotbox Shovel Width (G) | 60" | 59-7/8" | 59-7/8" |
| Hotbox Shovel Length (H) | 40" | 58-7/8" | 64-7/8" |
| Trailer Deck Space Length (I) | 48" | 65-1/2" | 58-1/8" |
| Trailer Deck/Hopper Width (J) | 72-5/8" | 73-1/4" | 73-1/4" |
| Useable Deck Space (K) | 20 sq. ft. | 30 sq. ft. | 25 sq. ft. |
| Shovel Opening Width (L) | 19-3/4" | 19-3/4" | 19-3/4" |
| Shovel Opening Height (M) | 13" | 13" | 13" |
| Lid Opening (N) | 91-5/8" | 102-1/4" | 116" |
| Lid Opening (O) | 72-3/4" | 94-1/2" | 104-3/8" |
Trailer Layout Reference
| Other Specifications | 2-Ton | 3-Ton | 4-Ton |
|---|---|---|---|
| TRAILER | |||
| Empty Weight | 2,950 lbs | 3,500 lbs | 4,400 lbs |
| Gross Weight | 6,950 lbs | 9,500 lbs | 12,400 lbs |
| Torsion Flexride Axles | (2) 5,200 lbs | (2) 5,200 lbs | (2) 7,000 lbs |
| Wheels & Tires | ST225/75 R15 LRC 6 PLY | ST225/75 R15 LRC 6 PLY | ST235/80 R16 LRC 6 PLY |
| HOPPER | |||
| Infrared Radiant Heaters | 70,000 BTU | 70,000 BTU | 70,000 BTU |
| Hotbox Capacity | 2.4 tons | 3.4 tons | 4.4 tons |
| Insulation | 2" | 2" | 2" |
| Inner Wall (SS) | 16 GA | 16 GA | 16 GA |
| Outer Wall (Mild Steel) | 14 GA | 14 GA | 14 GA |
| Hopper Construction | 11 GA | 11 GA | 11 GA |
| LPG 100# Vapour (Fast Fill) | 1 | 1 | 1 |
FAQs
| Questions | Answers |
|---|---|
| Does the 3 Ton unit heat faster than the 2 Ton? | They heat the same. The only difference is capacity. |
| Can I use this without a blower or battery? | Yes. The venturi system removes the need for blowers or batteries—infrared heat doesn’t require them. |
| Is this propane or diesel powered? | This unit uses clean-burning propane. No diesel tank or burner maintenance needed. |
| How long can it hold temp? | Up to 48 hours, thanks to the infrared system and dual-layer insulation. |
| Is it trailer-ready? | Yes. This model includes a rugged trailer frame with torsion axles and auto-lock unloading doors. |
Have questions? We’re here to help!
Speak to an Asphalt Expert!
| Capacity | 3.4 Tons |
| Heat Type | Infrared Propane (70,000 BTUs) |
| Fuel | 1 x 100 lb vapor-drawn LPG tank |
| Insulation | 2” walls |
| Inner Wall Material | 16 GA Stainless Steel |
| Outer Wall Material | 14 GA Mild Steel |
| Hopper Floor | 11 GA Mild Steel |
| Ignition | Automatic Spark Ignition |
| PLC Control | Digital with safety shut-off |
| Unloading Doors | Dual 19.75" x 13" with auto-lock |
| Trailer Axles | (2) 5,200 lb Torsion FlexRide |
| Trailer Frame | 6" x 2" Tubular Steel |
| Wheels & Tires | ST225/75 R15 LRC 6 PLY |
| Empty Weight | 3,500 lbs |
| Gross Weight | 9,500 lbs |
