R2 Modular Mini Infrared Asphalt Heater – Compact Asphalt Heater for Pothole Repairs
Reheat, don’t replace! Save money, time, and Mother Nature with this innovative asphalt heater.
Make up to $200 in 30 minutes! Be ready to go in as little as 5 minutes and repair a 4 square foot pothole in less than 15 minutes!
Units may come in blue or orange, depending on stock availability.
Financing Available. Fast Approvals. Apply Now!
- Cut patch failures with seamless heat weld
- Stop potholes fast, reopen lanes sooner
- Avoid costly saw cuts and asphalt waste
Free Shipping to commercial address with a dock or forkliftAvailability: In stock
Have questions? We’re here to help!
Heat Asphalt in Less Than 10 Minutes with the RY2X2 2' Infrared Asphalt Heater
Small potholes (basketball-sized or less)? Asphalt seams? Drainage repairs? Alligator cracking? You don't need to replace the asphalt - you can reheat and rejuvenate it with a portable asphalt heater! Oil spots eating away at your asphalt surface? Burn them off with the asphalt infrared machine and you'll preserve pavement and improve its look, too!
- Safely regulate your heat
- Repair 4 sq. feet in 15 minutes
- No need for large quantities of asphalt to repair small areas. Simply heat, rake, compact, and go
What Other Customers Say:

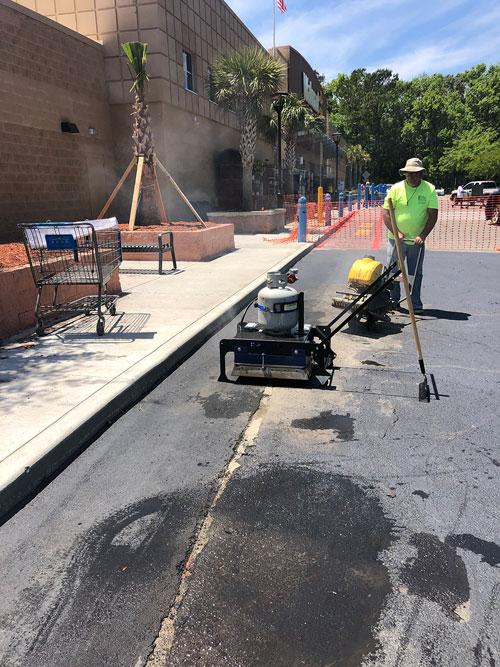

“We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. Were using our little infrared machine to take down those trip hazards rework that asphalt and make it seamless where it joins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!“
Kenneth Evans
Owner, Asphalt Repair LLC
How does this portable infrared asphalt heater work?

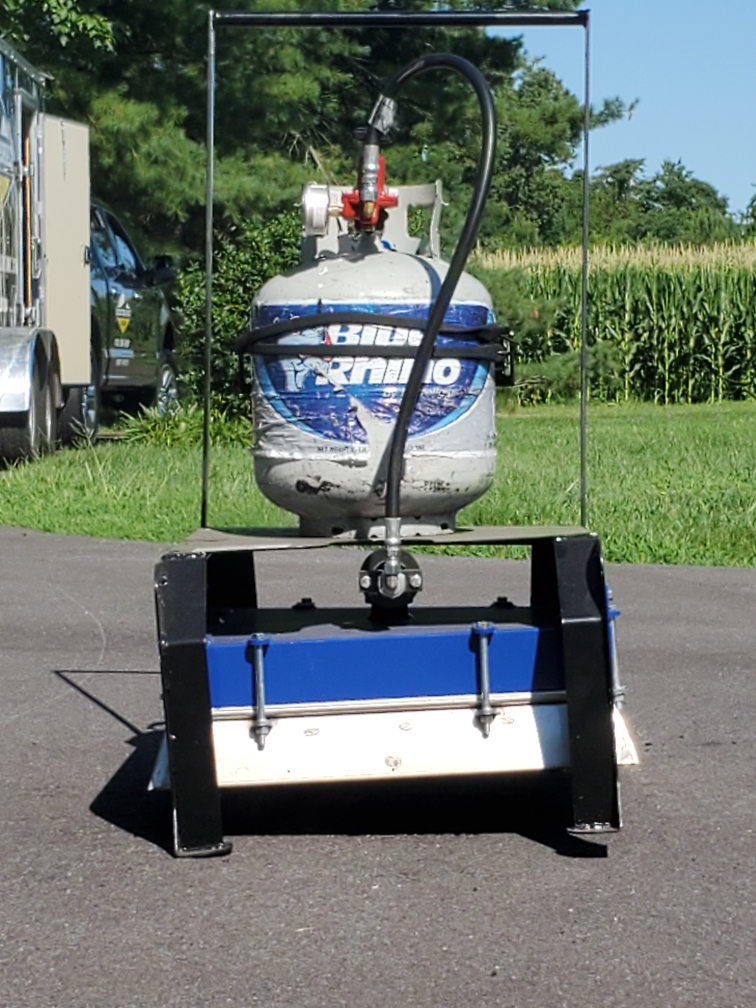

The RY2X2 Infrared Asphalt Heater is easy to use. Simply place it over the distressed asphalt point, light the self-contained burner, and in as little as five to 10 minutes, this heater will have the asphalt brought back to its original mixing temperature. Remove the machine, rake the asphalt into place, compact the asphalt with a vibrating plate or plate compactor, and you're all done!
In the past, you'd have to drive to the asphalt plant, buy new asphalt, dig up the old asphalt, replace it, and then figure out where to dispose of the old asphalt . . . all of those steps are eliminated now! Just wheel the portable infrared asphalt heater into place, light it, and you're halfway done! The unit weighs just 90lbs and features heat-shielded caster wheels, so you can operate it with just one person – no crew needed to move it around.
This infrared asphalt repair equipment is built to last: the frame is 11 gauge steel, and the stainless steel and ceramic heater cartridge has an average lifespan of 1,500 hours.
The RY2X2 asphalt heating machine uses actual infrared heating (not blue flame heating) through a ceramic mesh cartridge. This provides the best heat distribution of any infrared heater for asphalt in its class.
Like all RynoWorx products, this unit puts safety first. No open torch flame that can blow out or leak propane on the job. And the regulator with a built-in pressure gauge means you always know how much fuel is flowing so you can turn the heater temperature up or down.
How can you make money with this? You can do asphalt repairs all year-round, but especially for emergency winter pothole repair.
Looking for infrared asphalt repair equipment for sale?
You're in luck because you landed on the right website. Learn more about our RY2X2 asphalt reheat systems below or chat with us if you have any questions about this unit.
Video: How to repair asphalt parking lots with the RY2X2 Infrared Asphalt Heater
RY2X2 Infrared Asphalt Heaters will bring distressed asphalt back to life
Infrared technology allows you to heat up and soften damaged areas so that they can be re-worked and compacted to appear brand new. In as little as 5 minutes this heater will have the asphalt brought to its original mixing temperature, allowing for effective and cost-efficient repairs. You’ll now be able to spend minimal time repairing potholes, bird baths, cracks, and surface imperfections on both new and used asphalt.
- Eliminate trips to purchase new asphalt and dispose of old damaged asphalt by simply re-heating and re-working the affected areas.
- The Mini Infrared Heater has one of the lowest operating costs on the market, in ideal operating conditions you can run your heater for as little as $1.50 per hour.
- The Mini Infrared Heater design is self-contained and unlike an open flame torch, will not be affected by weather conditions. Since there is no torch you can work on even the windiest days.
- The heater cartridge has a typical life of 1,500 hours and can easily be replaced in less than 20 minutes.
- Caster wheels with heat shields allow a single operator to maneuver throughout parking lots and driveways without needing a second person to move the heater.
- Ergonomic adjustable handlebars allow for a compact footprint during transportation and a raised position during operation.
- Adjustable regulator with built-in pressure gauge allows for safe and precise control of fuel flow and heater temperature.
- Infrared heater technology replaces the need for an open torch flame which creates a safer work area for the operator.

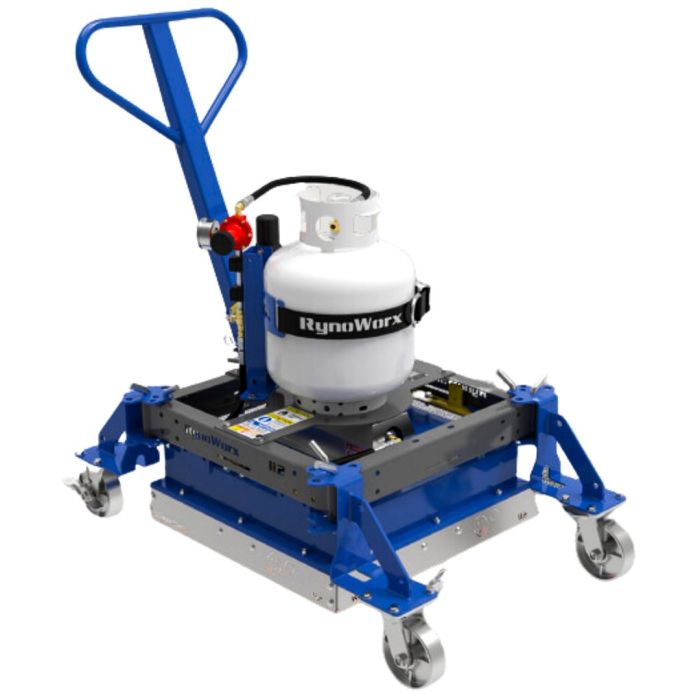

R2 Infrared Asphalt Heater
The R2 Infrared Asphalt Heater is a jobsite essential for contractors who need compact performance that delivers big results. This 24"x24" unit heats and softens asphalt for fast, seamless pothole repair, crack filling, and surface smoothing—no need to haul new material or make extra trips to the plant.
It’s the go-to tool for patching potholes, reheating trip hazards, fixing birdbaths, and reworking seams on asphalt driveways, parking lots, school grounds, and commercial surfaces—perfect before asphalt sealcoating or pavement seal coating.
Compatible with RynoLink caster assemblies, the R2 lets you join multiple units to scale up your footprint—ideal for longer cracks or larger patch areas.
For even faster patch jobs, explore our asphalt patching tools and equipment.
Don’t forget to prep the surface with our asphalt blowers and rotary brooms—essential paving tools to ensure a clean working area before heat and compact.

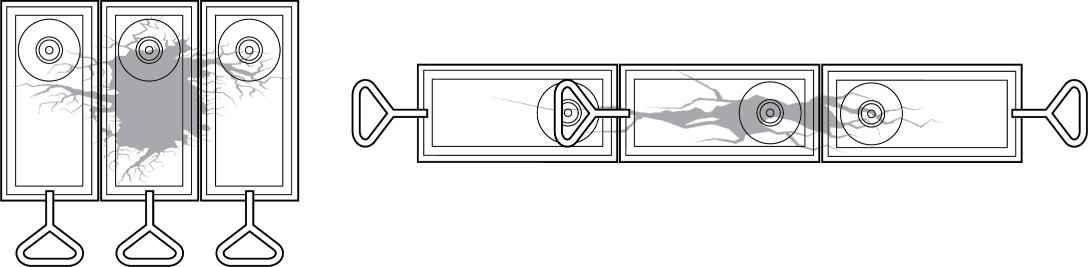

Modular Flexibility That Expands With You
THE MODULAR DESIGN ALLOWS YOU TO QUICKLY CONNECT UNITS TO EXPAND THE POSSIBILITIES
Easily connect multiple units together in multiple configurations to maximize flexibility and efficiency. Regardless of the size and shape of the asphalt damage, RynoWorx Infrared Heaters are the go-to for successful Asphalt Maintenance Professionals.
What Our Customers Say:
“We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. We're using our little infrared machine to take down those trip hazards, rework that asphalt, and make it seamless where it joins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!“
Owner, Asphalt Repair LLC
Key Features & Benefits
- Compact but Mighty – 24” x 24” heating zone; patch in tight spots with ease
- Fast Heat-Up – Softens asphalt in as little as 8 minutes
- Efficient Fuel Use – Runs 6–8 hours on a 30-lb propane tank
- Safe to Operate – No open flames; built-in regulator and pressure gauge
- Jobsite-Ready – Wind-resistant and weather-proof ceramic heating cartridge
- Modular Scaling – Connect multiple units for longer or wider repairs
Application Instructions
Tools Needed:
- Propane tank (30 lbs vapor draw)
- Lute rake or asphalt rake
- Plate compactor or tamper
- 1. Connect propane and regulator
- 2. Position heater over damaged asphalt
- 3. Heat for 6–8 minutes until pliable
- 4. Rake and blend softened asphalt
- 5. Compact the repair area and reopen to traffic
Pro Tip: Use a blower or broom to remove debris before heating.
Can You Heat an Oil-Stained Area? Use the Key Test First
Before firing up your infrared heater on an oil-spot area, check that the asphalt surface is solid enough to work with. Here's a simple field test to help you avoid failed repairs and wasted time:
The Key Test
- Press a key or screwdriver into the oil-stained spot.
- If it sinks in or feels mushy: The asphalt is compromised. Heat won’t help. You’ll need to cut and patch the area instead.
- If it stays solid: You're good. Just pressure wash with hot water or degrease thoroughly, then go ahead and heat it with the R2 Infrared Heater.
This quick test saves time, protects your heater, and ensures your patch holds up—especially when dealing with old driveways or commercial parking lots where oil stains are common.
Storage & Handling
- Store in dry, covered area
- Allow unit to fully cool before storing
- Replace heater cartridges as needed
- Disconnect propane after use
- Do not store with fuel attached
Why Choose the R2 Infrared Asphalt Heater
This isn’t just any asphalt heater—it’s a revenue machine. The R2 is compact enough to fit in your trailer and powerful enough to generate up to $450,000 in job revenue, whether you're tackling parking lot sealcoating, pothole repair, or prepping cracks before applying hot crack filler.
It’s contractor-tested, field-proven, and optimized for fast ROI. With low running costs, safer operation, and virtually no downtime, it’s the perfect tool to upgrade your blacktop repair toolkit.
Want more power? Check out the R3 Infrared Heater and R4 Heavy-Duty Unit for larger-scale jobs.
Ready to patch faster, safer, and more profitably? Add the R2 Infrared Asphalt Heater to your crew and start delivering professional-grade asphalt sealcoat jobs and seamless pavement repairs that boost your bottom line.
| Mini Infrared Heater Features | Model R2 | Model R3 | Model R4 |
|---|---|---|---|
| Heating Area (inches) | 24" x 24" | 19" x 39" | 19" x 51" |
| Assembled Dimensions (inches) | 42-7/8" x 43-1/2" x 27" | 42-7/8" x 58-1/2" x 22" | 42-7/8" x 70-1/2" x 22" |
| Weight | 153 lbs | 169 lbs | 189 lbs |
| Fuel Type | Propane Vapor | Propane Vapor | Propane Vapor |
| Max Fuel Pressure | 35 PSI | 45 PSI | 45 PSI |
| Burner Type | 50,000 BTU | 75,000 BTU | 100,000 BTU |
| Heater Cartridge | Ceramic | Ceramic | Ceramic |
| RynoLink Caster Assemblies | ✔ | ✔ | ✔ |
Watch the R2 Infrared Heater in Action
Modular Mini Infrared Heaters Overview (R2, R3, R4)
Discover the features that make the R2 a game changer for patching. This quick video walks through the modular design, caster system, and how the heater scales with your job.
See the Modular Infrared Heater in Real Job Conditions
Watch how contractors put the modular infrared heater to work in the field—fixing trip hazards, smoothing transitions, and creating seamless asphalt repairs up against buildings and curbs.
ANSWER FOR YOUR CONCERNS
| Questions | Answers |
|---|---|
| What can I fix with the R2 Infrared Asphalt Heater? | Potholes, cracks, birdbaths, and surface seams on asphalt driveways, parking lots, and commercial spaces. |
| How long does it take to heat the asphalt? | Just 6–8 minutes, depending on weather and surface conditions. |
| Can one person operate it? | Yes! The R2 is designed for single-person operation—even when connected to additional units using RynoLink/Hinge Kit. |
| Is it safe to use around traffic or pedestrians? | Absolutely. There’s no open flame and it has a built-in pressure gauge for safe fuel control. |
| Do I need to buy new asphalt? | No. You can reheat and reuse existing asphalt, saving money and materials. |
Have questions? We’re here to help!
| Shipping Weight | 120 |
| Shipping Length | 36 |
| Shipping Width | 26 |
| Shipping Height | 20 |
| Model | R2 |
| Heating Area | 24" x 24" |
| Assembled Dimensions | 42-7/8" x 43-1/2" x 27" |
| Weight | 153 lbs |
| Fuel Type | Propane Vapor |
| Max Fuel Pressure | 35 psi |
| Burner Type | 50,000 BTU/hr Infrared |
| Heater Cartridge | Ceramic |
| Runtime | 6–8 hours on 30-lb tank |
4.9
5 stars
92% (11)
4 stars
0% (0)
3 stars
8% (1)
2 stars
0% (0)
1 star
0% (0)
Share your thoughts with other customers
Top customer reviews
- Could not be happier with the service and supportCould not be happier with the service and support, I Have made several equipment purchases and material purchases through Asphalt Kingdom our service rep Adi is exceptional and so easy to work with. I would highly recommend Asphalt Kingdom for equipment and other related asphalt support.
- Excellent servicesExcellent services, very happy to do business with Asphalt Kingdom. highly recommend.
And now I'm ready to make money
- SeamlessThe seamless repair sells itself
- Fantastic customer serviceFantastic customer service with expert knowledge and advice. Highly recommend this company for anyone looking to get into the asphalt maintenance business.
- Ry2×2Excellent equipment. For medium pothole repair tools
- Absolutely worth it!I cannot begin to express how handy the ry2x2's are! Definitely a time saver for us!
- The IR ry2x2 units performed terrific! They should be flying out of your warehouse! Thanks again!The IR ry2x2 units performed terrific! They should be flying out of your warehouse! Thanks again!
- IR HeaterThis baby is perfect for small hard to get areas
- This IR machine is fantastic.This IR machine is fantastic. Great value for money all contractors must have this for sure.
- RY 2x2We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. Were using our little infrared machine to take down those trip hazards rework that asphalt and make it seamless where it joRead moreins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!
- This is a fantastic piece of patching equipment.I pre-ordered one of these for my business and after it arrives it sat for a few days before I took it out for its first use. It comes about 95% assembled and its very well packaged.
It's really sturdy too. Operation is easy too. You simply open the gas, set the regulator to 12psi and stick a torch under it for a few seconds to ignite it. A=Once lit, crank the pressure to 30psi and let it cook the spot you want to patch for about 10 min. Scarify the surface, add HMA if needed, smootRead moreh and compact. That's pretty much it.
This really is a great patching tool and it works just like the sales demonstration video says and shows. This thing will earn its keep with us very fast. Everyone on my crew that has used it so far loves it. We're now shopping larger IR units. If you're in the business and you're on the fence about this, do yourself a favor and get one. You'll be glad you did. I know I'm glad I did. - I freaking love this thingFirst Impression of the Little Infrared Judd Burdon is selling!
I freaking love this thing for what it is. For smaller repairs, this thing kicks Ass I’m my opinion! Only thing I may do different would be to have wheels on all 4 corners. This thing is great! - Great price okay qualityI purchased this machine to add services to my sealcoating business on the Eastern Shore of Maryland. Overall the price point is great. The machine works well heats up quickly and does its job. Where I am not impressed is the quality of the machine upon taking it out of the box reading the manual putting together the few bolt-ons. I noticed the front legs were bent and the machine rocks. This is a liability for not only my crew but my business. For the money spent I would have expected this to nRead moreot been an issue clearly coming from the factory it should have never passed a quality test overall just not happy with the quality. Price, value, and overall working components are great!
Wondering how you can make money all winter long — even when it's snowing outside? Welcome to the lucrative world of pothole repair!
It's a fact: large companies won't come out to fix one or two potholes on a driveway or parking lot. Great news, my friend — there are riches in those niches! Pick up an RY2x2 Machine and click the Make it a Biz box to get these great resources which we'll happily include with your purchase.
- Video Guide to Selling Pothole Repair as a Service: Judd Burdon walks you through how to find business, approach pavement asset owners, and land deals doing lucrative pothole repairs.
- Call Scripts: Too shy to go in and see a property owner? Get the Asphalt Kingdom Phone Script to use when calling and convert more customers. You'll have them at 'hello'.
- Facebook Ads: Use these gorgeous graphics to grab attention and get business! We've designed these social media ads so you just have to add your logo and post. Yours free when you add the Make it a Biz add-on to your purchase.
- Pothole Repair Proposal Template: Look like you've been in business forever even if you're just starting out. Our polished pothole proposal template helps your customers feel confident that you are a professional. Just fill in the blanks, print or email!
- Pricing Guide: There's nothing worse than working hard all day and just breaking even or worse — not making any money at all! Use our guide to anticipate unforeseen expenses and make sure you are charging what you deserve for the work you are going to do.
- Invitation to the AK Round Table: Our weekly Zoom meeting is the place to gather with other entrepreneurs just like you who want to start a business. Ask your questions and learn from others on the same path.
Pothole repair is profitable and you can reap the rewards doing it full time or as a side hustle. Just click on the checkbox to Make it a Biz!
Additional value when you order this product:
 Role-Playing Video |
$375 |
 Customizable Proposal Template |
$375 |
| Customizable Social Media Templates |
$425 |
 Phone Script |
$325 |
| Exclusive Access to AK Round Table Meetings |
Priceless |
| TOTAL VALUE | $1,500 |
A full 20 lb propane tank typically lasts about 8 hours on the R2, 5 hours on the R3, and 4 hours on the R4. Actual run time can vary depending on heat intensity and ambient temperature.
Yes. You can use an infrared asphalt heater over areas with existing repairs, including hot-pour rubberized crack filler and cold patch.
Make sure to remove and discard any melted rubber crack filler before placing your patch. Melted crack filler can create instability in the repair and reduce patch performance.
If the repair area is larger than your infrared heater’s square-foot coverage, you will need to do multiple presses. Each press typically takes about 7 minutes, depending on ambient temperature. You can overlap each press by about 4 inches to ensure consistent heat across the seam.
When adding new asphalt or millings, build it about 1/2 inch higher than the surrounding aged asphalt. After compacting and tamping, the repaired area should finish flush with the existing surface.
Place the torch underneath the stainless steel skirt. Ensure the torch is not directed at the ceramic surface.
A propane tank can freeze in cold weather because the liquid inside needs heat from the surrounding air to vaporize into gas. If it’s too cold outside or the tank is too low, it may not produce enough pressure to run your equipment.
No electric start.
Heat time can be as short as about 10 minutes, depending on the age of the asphalt, how clean the surface is, and the ambient temperature. Colder conditions typically require more time to soften the asphalt.
To avoid burning the surface and help the heat penetrate deeper, run the heater in two stages:
- High PSI: 26 to 35 PSI for 5 to 8 minutes
- Low PSI: 15 to 25 PSI for 5 to 8 minutes
