R3 Modular Mini Infrared Asphalt Heater – Infrared Crack & Seam Repair Heater
Add AK Make it a Biz Success Pack - Free With Purchase
Make up to $250 in 30 minutes! Ready to run in under 5 minutes and rework a 5-square-foot area in less than 15 minutes.
Units may come in blue or orange, depending on stock availability.
Financing available. Apply Now!
- Heating area: 19” x 39”
- Max fuel pressure: 45 psi
- Burner type: 75,000 BTU
Free Shipping to commercial address with a dock or forkliftAvailability: In stock
Have questions? We’re here to help!
Speak to an Asphalt Expert!
Heat Asphalt in Less Than 10 Minutes with the RY2X2 2' Infrared Asphalt Heater
Small potholes (basketball-sized or less)? Asphalt seams? Drainage repairs? Alligator cracking? You don't need to replace the asphalt - you can reheat and rejuvenate it with a portable asphalt heater! Oil spots eating away at your asphalt surface? Burn them off with the asphalt infrared machine and you'll preserve pavement and improve its look, too!
- Safely regulate your heat
- Repair 4 sq. feet in 15 minutes
- No need for large quantities of asphalt to repair small areas. Simply heat, rake, compact, and go
What Other Customers Say:
“We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. Were using our little infrared machine to take down those trip hazards rework that asphalt and make it seamless where it joins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!“
Kenneth Evans
Owner, Asphalt Repair LLC
How does this portable infrared asphalt heater work?
The RY2X2 Infrared Asphalt Heater is easy to use. Simply place it over the distressed asphalt point, light the self-contained burner, and in as little as five to 10 minutes, this heater will have the asphalt brought back to its original mixing temperature. Remove the machine, rake the asphalt into place, compact the asphalt with a vibrating plate or plate compactor, and you're all done!
In the past, you'd have to drive to the asphalt plant, buy new asphalt, dig up the old asphalt, replace it, and then figure out where to dispose of the old asphalt . . . all of those steps are eliminated now! Just wheel the portable infrared asphalt heater into place, light it, and you're halfway done! The unit weighs just 90lbs and features heat-shielded caster wheels, so you can operate it with just one person – no crew needed to move it around.
This infrared asphalt repair equipment is built to last: the frame is 11 gauge steel, and the stainless steel and ceramic heater cartridge has an average lifespan of 1,500 hours.
The RY2X2 asphalt heating machine uses actual infrared heating (not blue flame heating) through a ceramic mesh cartridge. This provides the best heat distribution of any infrared heater for asphalt in its class.
Like all RynoWorx products, this unit puts safety first. No open torch flame that can blow out or leak propane on the job. And the regulator with a built-in pressure gauge means you always know how much fuel is flowing so you can turn the heater temperature up or down.
How can you make money with this? You can do asphalt repairs all year-round, but especially for emergency winter pothole repair.
Looking for infrared asphalt repair equipment for sale?
You're in luck because you landed on the right website. Learn more about our RY2X2 asphalt reheat systems below or chat with us if you have any questions about this unit.
Video: How to repair asphalt parking lots with the RY2X2 Infrared Asphalt Heater
RY2X2 Infrared Asphalt Heaters will bring distressed asphalt back to life
Infrared technology allows you to heat up and soften damaged areas so that they can be re-worked and compacted to appear brand new. In as little as 5 minutes this heater will have the asphalt brought to its original mixing temperature, allowing for effective and cost-efficient repairs. You’ll now be able to spend minimal time repairing potholes, bird baths, cracks, and surface imperfections on both new and used asphalt.
- Eliminate trips to purchase new asphalt and dispose of old damaged asphalt by simply re-heating and re-working the affected areas.
- The Mini Infrared Heater has one of the lowest operating costs on the market, in ideal operating conditions you can run your heater for as little as $1.50 per hour.
- The Mini Infrared Heater design is self-contained and unlike an open flame torch, will not be affected by weather conditions. Since there is no torch you can work on even the windiest days.
- The heater cartridge has a typical life of 1,500 hours and can easily be replaced in less than 20 minutes.
- Caster wheels with heat shields allow a single operator to maneuver throughout parking lots and driveways without needing a second person to move the heater.
- Ergonomic adjustable handlebars allow for a compact footprint during transportation and a raised position during operation.
- Adjustable regulator with built-in pressure gauge allows for safe and precise control of fuel flow and heater temperature.
- Infrared heater technology replaces the need for an open torch flame which creates a safer work area for the operator.

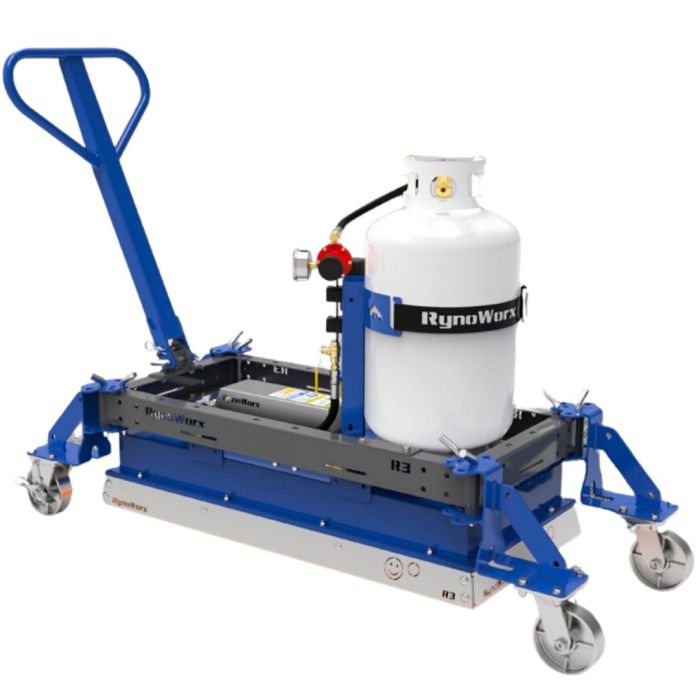

R3 Modular Mini Infrared Asphalt Heater
When precision matters, the R3 Modular Mini Infrared Asphalt Heater delivers. Its 19" x 39" ceramic heating area targets narrow asphalt damage—like long cracks, seam failures, curbline repairs, or crack filling—without wasting fuel or material.
Use the R3 to revive asphalt in tight or awkward spots where larger heaters simply won’t fit. Designed for one-person use, it’s field-ready for contractors tackling pothole repair, parking lot sealcoating, or fixing seams before applying asphalt sealcoat on commercial lots and driveways.
Clean surfaces quickly with our asphalt cleaning tools—essential paving tools for every prep job.
Pair with crack filling equipment to complete your repair system.
Modular Flexibility That Expands With You
THE MODULAR DESIGN ALLOWS YOU TO QUICKLY CONNECT UNITS TO EXPAND THE POSSIBILITIES
Easily connect multiple units together in custom layouts. Whether it’s long seams or wide patches, RynoWorx Infrared Heaters adapt to the jobsite. Trusted by asphalt pros for their flexibility and efficiency.
What Our Customers Say:
“We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. We're using our little infrared machine to take down those trip hazards, rework that asphalt, and make it seamless where it joins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!“
Owner, Asphalt Repair LLC
Key Features & Benefits
- Slim Footprint – 19"x39" coverage for cracks, seams, and utility cuts
- Quick Heat-Up – Reach working temps in as little as 8 minutes
- One-Person Operation – Ergonomic handlebars and compact transport size
- Fuel-Efficient – Runs 6–8 hours on a single 30-lb propane tank
- Weather-Resistant – Enclosed ceramic heater resists wind and moisture
- Safe Performance – No open flame; includes built-in pressure gauge
- Modular Setup – Combine with other units for expanded coverage
Application Instructions
Tools Needed:
- 30-lb propane tank
- Asphalt rake or lute
- Plate compactor or tamper
Steps to Use:
- 1. Connect propane and check pressure regulator
- 2. Position the R3 over the crack or seam
- 3. Heat asphalt for 6–8 minutes
- 4. Rake and smooth the softened material
- 5. Compact and reopen to traffic
Pro Tip: Use a rotary broom or blower to remove debris before heat application. Clean surfaces ensure better bonding and longer-lasting pavement seal coating results.
Can You Heat Over Oil-Contaminated Asphalt? Try the Key Test
Before using the R3 Infrared Heater on seam failures or crack areas with possible oil spots, it's critical to make sure the surface is stable enough to be reheated. Use this simple test to avoid rework or wasted effort:
The Key Test
- Press a key or screwdriver into the area in question.
- If it sinks in or feels soft: The asphalt is compromised. Heat won’t restore it. You’ll need to remove and patch instead.
- If it stays solid: Clean thoroughly with a hot water pressure washer or degreaser, and you’re good to go with the R3 for reheating and reworking.
Doing this quick field test prevents repair failure, ensures proper bonding, and gives your crack or seam repair lasting results—especially on older driveways and parking lots.
Storage & Handling
- Let the unit cool fully before transporting or storing
- Store upright in a dry, enclosed space
- Always detach propane when not in use
- Replace ceramic heater cartridges as needed
Why Choose the R3 Modular Mini Infrared Asphalt Heater
This heater was built to do what others can’t: precise repairs in confined areas. No more overkill on small cracks. The R3 gives you full control for hot crack filler, seamless transitions, and minimal material waste—all in one lightweight package.
Contractors using this heater report high ROI with minimal overhead. Add it to your fleet or bundle it with the R2 and R4 for full modular flexibility on any job.
Need more heat per square foot? Check out the R4 Modular Mini Infrared Asphalt Heater. Want something ultra-compact? Go with the R2 Modular Mini Infrared Asphalt Heater.
Take control of precision asphalt repair. Add the R3 Modular Mini Infrared Heater to your fleet and get cleaner seams, faster turnaround, and fewer material costs—whether you're prepping for sealcoating asphalt, filling long cracks, or fixing small problem areas before you seal a parking lot.
| Mini Infrared Heater Features | Model R2 | Model R3 | Model R4 |
|---|---|---|---|
| Heating Area (inches) | 24" x 24" | 19" x 39" | 19" x 51" |
| Assembled Dimensions (inches) | 42-7/8" x 43-1/2" x 27" | 42-7/8" x 58-1/2" x 22" | 42-7/8" x 70-1/2" x 22" |
| Weight | 153 lbs | 169 lbs | 189 lbs |
| Fuel Type | Propane Vapor | Propane Vapor | Propane Vapor |
| Max Fuel Pressure | 35 PSI | 45 PSI | 45 PSI |
| Burner Type | 50,000 BTU | 75,000 BTU | 100,000 BTU |
| Heater Cartridge | Ceramic | Ceramic | Ceramic |
| RynoLink Caster Assemblies | ✔ | ✔ | ✔ |
Watch the R3 Infrared Heater in Action
Modular Mini Infrared Heaters Overview (R2, R3, R4)
Discover the features that make the R3 a game changer for patching. This quick video walks through the modular design, caster system, and how the heater scales with your job.
See the Modular Infrared Heater in Real Job Conditions
Watch how contractors put the modular infrared heater to work in the field—fixing trip hazards, smoothing transitions, and creating seamless asphalt repairs up against buildings and curbs.
ANSWER FOR YOUR CONCERNS
| Questions | Answers |
|---|---|
| What types of damage is the R3 best for? | Narrow asphalt damage—cracks, seams, utility cuts, and tight repair zones. |
| How fast does it heat the surface? | In about 6–8 minutes, asphalt is soft enough to rake and compact. |
| Can one person use this on their own? | Yes. It’s designed for solo operation with ergonomic controls. |
| Can it be linked to other heaters? | Absolutely. Use RynoLink caster assemblies to connect with the R2 or R4 models. |
| Is it safe to use near buildings or foot traffic? | Yes. It uses enclosed ceramic infrared heat, not an open torch flame. |
Have questions? We’re here to help!
Speak to an Asphalt Expert!
| Model | R3 |
| Heating Area | 19" x 39" |
| Assembled Dimensions | 42-7/8" x 58-1/2" x 22" |
| Weight | 169 lbs |
| Fuel Type | Propane Vapor |
| Max Fuel Pressure | 45 psi |
| Burner Type | 75,000 BTU/hr Infrared |
| Heater Cartridge | Ceramic |
| Runtime | 6–8 hours on 30-lb propane tank |
