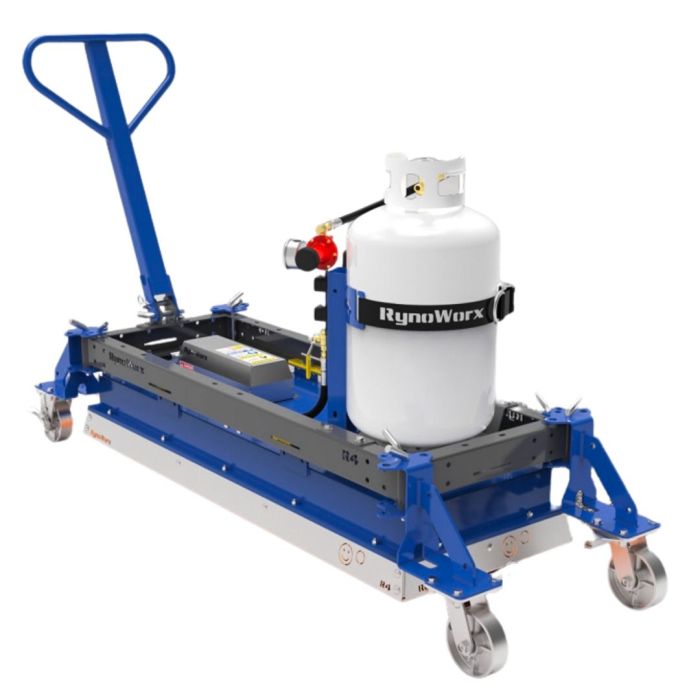

R4 Modular Mini Infrared Asphalt Heater – Large-Surface Asphalt Repair System
Add AK Make it a Biz Success Pack - Free With Purchase
Make up to $300 in 30 minutes! Fires up fast and handles up to 7 square feet of patching in under 15 minutes.
Units may come in blue or orange, depending on stock availability.
Financing available. Apply Now!
- Heat long seams & wide potholes in one pass
- Link R-Series units together as your jobs grow
- Run it solo with safer heat, no open flame
Free Shipping to commercial address with a dock or forkliftAvailability: Out of stock
Have questions? We’re here to help!
Speak to an Asphalt Expert!
Heat Asphalt in Less Than 10 Minutes with the RY2X2 2' Infrared Asphalt Heater
Small potholes (basketball-sized or less)? Asphalt seams? Drainage repairs? Alligator cracking? You don't need to replace the asphalt - you can reheat and rejuvenate it with a portable asphalt heater! Oil spots eating away at your asphalt surface? Burn them off with the asphalt infrared machine and you'll preserve pavement and improve its look, too!
- Safely regulate your heat
- Repair 4 sq. feet in 15 minutes
- No need for large quantities of asphalt to repair small areas. Simply heat, rake, compact, and go
What Other Customers Say:
“We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. Were using our little infrared machine to take down those trip hazards rework that asphalt and make it seamless where it joins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!“
Kenneth Evans
Owner, Asphalt Repair LLC
How does this portable infrared asphalt heater work?
The RY2X2 Infrared Asphalt Heater is easy to use. Simply place it over the distressed asphalt point, light the self-contained burner, and in as little as five to 10 minutes, this heater will have the asphalt brought back to its original mixing temperature. Remove the machine, rake the asphalt into place, compact the asphalt with a vibrating plate or plate compactor, and you're all done!
In the past, you'd have to drive to the asphalt plant, buy new asphalt, dig up the old asphalt, replace it, and then figure out where to dispose of the old asphalt . . . all of those steps are eliminated now! Just wheel the portable infrared asphalt heater into place, light it, and you're halfway done! The unit weighs just 90lbs and features heat-shielded caster wheels, so you can operate it with just one person – no crew needed to move it around.
This infrared asphalt repair equipment is built to last: the frame is 11 gauge steel, and the stainless steel and ceramic heater cartridge has an average lifespan of 1,500 hours.
The RY2X2 asphalt heating machine uses actual infrared heating (not blue flame heating) through a ceramic mesh cartridge. This provides the best heat distribution of any infrared heater for asphalt in its class.
Like all RynoWorx products, this unit puts safety first. No open torch flame that can blow out or leak propane on the job. And the regulator with a built-in pressure gauge means you always know how much fuel is flowing so you can turn the heater temperature up or down.
How can you make money with this? You can do asphalt repairs all year-round, but especially for emergency winter pothole repair.
Looking for infrared asphalt repair equipment for sale?
You're in luck because you landed on the right website. Learn more about our RY2X2 asphalt reheat systems below or chat with us if you have any questions about this unit.
Video: How to repair asphalt parking lots with the RY2X2 Infrared Asphalt Heater
RY2X2 Infrared Asphalt Heaters will bring distressed asphalt back to life
Infrared technology allows you to heat up and soften damaged areas so that they can be re-worked and compacted to appear brand new. In as little as 5 minutes this heater will have the asphalt brought to its original mixing temperature, allowing for effective and cost-efficient repairs. You’ll now be able to spend minimal time repairing potholes, bird baths, cracks, and surface imperfections on both new and used asphalt.
- Eliminate trips to purchase new asphalt and dispose of old damaged asphalt by simply re-heating and re-working the affected areas.
- The Mini Infrared Heater has one of the lowest operating costs on the market, in ideal operating conditions you can run your heater for as little as $1.50 per hour.
- The Mini Infrared Heater design is self-contained and unlike an open flame torch, will not be affected by weather conditions. Since there is no torch you can work on even the windiest days.
- The heater cartridge has a typical life of 1,500 hours and can easily be replaced in less than 20 minutes.
- Caster wheels with heat shields allow a single operator to maneuver throughout parking lots and driveways without needing a second person to move the heater.
- Ergonomic adjustable handlebars allow for a compact footprint during transportation and a raised position during operation.
- Adjustable regulator with built-in pressure gauge allows for safe and precise control of fuel flow and heater temperature.
- Infrared heater technology replaces the need for an open torch flame which creates a safer work area for the operator.
R4 Modular Mini Infrared Asphalt Heater
The R4 Modular Mini Infrared Asphalt Heater is built for large-area pothole repair and pavement seal coating jobs. Its expanded 19" x 51" heating surface delivers fast, even heat for potholes, joints, patches, and surface defects—no need to haul new mix or make dump runs.
Whether you're repairing school lots, parking lot sealcoating jobs, or municipal surfaces, the R4 offers high output with low running costs—making it a favorite among seal parking lot professionals and heavy-use contractors.
Prep surfaces clean with our asphalt cleaning tools—essential paving tools for asphalt repair.
For deeper structural fixes, explore our asphalt patch repair solutions—ideal when paired with a heat-based approach.
Modular Flexibility That Expands With You
THE MODULAR DESIGN ALLOWS YOU TO QUICKLY CONNECT UNITS TO EXPAND THE POSSIBILITIES
Easily link multiple R4 units—or mix and match with R2 or R3—to match your jobsite needs. Whether working on wide lanes, long cracks, or irregular areas, RynoWorx heaters give you total flexibility.
What Our Customers Say:
“We’re working on a project at the Super Walmart in Charleston South Carolina, and I just wanted to take a minute and let you know how impressed I am with this little infrared machine. We are currently using it as part of a larger project we have underway here. There was some patching and Walmart Management had some concerns about possible trip hazards up near the building. We're using our little infrared machine to take down those trip hazards, rework that asphalt, and make it seamless where it joins the existing asphalt right up by the building to eliminate the trip hazards. This is a great little machine and I look forward to getting a bigger machine for bigger projects. I’ll send you some photos. All the best!“
Owner, Asphalt Repair LLC
Key Features & Benefits
- Expanded Heating Area – 19"x51" footprint covers wide repair zones
- High BTU Output – 100,000 BTU/hr for fast, even heating
- Efficient Runtime – 6–8 hours on a 30-lb propane tank
- Safe & Enclosed Flame – Ceramic cartridge eliminates torch hazards
- One-Person Setup – Ergonomic handles and easy transport size
- Field-Proven Design – Weather-resistant, fast startup, easy to maintain
- Modular Expansion – Connect to R2 or R3 units for larger layouts
Application Instructions
Tools Needed:
- 30-lb propane tank
- Asphalt rake or lute
- Plate compactor or tamper
Steps to Use:
- 1. Connect propane and verify pressure using built-in gauge
- 2. Place R4 over repair area
- 3. Heat asphalt for 8–10 minutes
- 4. Rake and rework softened material
- 5. Compact and finish
Pro Tip: Use a rotary broom or blower before heating. It ensures better bonding, especially when preparing for hot crack filler or asphalt sealcoating.
Can You Reheat Over Oil Spots? Use the Key Test First
Before using the R4 Infrared Heater on any asphalt surface that shows signs of oil or grease, it's crucial to check the integrity of the asphalt. Reheating soft or compromised pavement can lead to failure. Use this quick jobsite test to know what you're working with:
The Key Test
- Press a key or screwdriver into the oil spot or stained area.
- If it sinks in or feels soft: The base is likely damaged. Heating won’t help. You’ll need to remove and patch instead.
- If it stays solid: You're good. Hot pressure wash or degrease the area, let it dry, and proceed with infrared heating.
This step ensures proper bonding, protects your heater investment, and gives your repair a longer life—especially when working on gas station lots, high-traffic commercial zones, or heavily stained pavement.
Storage & Handling
- Allow unit to fully cool before storing
- Store in an upright position in a dry location
- Disconnect propane tank after use
- Replace ceramic cartridges as needed
Why Choose the R4 Modular Mini Infrared Asphalt Heater
When you need to cover more ground in less time, the R4 gets it done. Designed for high-output performance, this infrared asphalt heater brings large sections of distressed asphalt back to life—safely, quickly, and profitably. Whether it’s prepping before a seal parking lot job or smoothing a rough commercial driveway, the R4 delivers.
Contractors love its power, but also its modular capability—making it ideal for scaling up or combining with smaller units.
Need something narrower for crack or seam repairs? Check out the R3 Modular Mini Infrared Asphalt Heater. Want a compact patching tool? Go with the R2 Modular Mini Infrared Asphalt Heater.
Upgrade your asphalt repair capabilities with the R4 Modular Mini Infrared Heater. More coverage. More power. Less downtime. Perfect for pothole repair, pre-sealcoating, and pro-level patching.
| Mini Infrared Heater Features | Model R2 | Model R3 | Model R4 | |
|---|---|---|---|---|
| Heating Area (inches) | 24" x 24" | 19" x 39" | 19" x 51" | |
| Assembled Dimensions (inches) | 42-7/8" x 43-1/2" x 27" | 42-7/8" x 58-1/2" x 22" | 42-7/8" x 70-1/2" x 22" | |
| Weight | 153 lbs | 169 lbs | 189 lbs | |
| Fuel Type | Propane Vapor | Propane Vapor | Propane Vapor | |
| Max Fuel Pressure | 35 PSI | 45 PSI | 45 PSI | |
| Burner Type | 50,000 BTU | 75,000 BTU | 100,000 BTU | |
| Heater Cartridge | Ceramic | Ceramic | Ceramic | |
| RynoLink Caster Assemblies | ✔ | ✔ | ✔ |
| Mini Infrared Heater Features | Model R2 | Model R3 | Model R4 |
|---|---|---|---|
| Heating Area (inches) | 24" x 24" | 19" x 39" | 19" x 51" |
| Assembled Dimensions (inches) | 42-7/8" x 43-1/2" x 27" | 42-7/8" x 58-1/2" x 22" | 42-7/8" x 70-1/2" x 22" |
| Weight | 153 lbs | 169 lbs | 189 lbs |
| Fuel Type | Propane Vapor | Propane Vapor | Propane Vapor |
| Max Fuel Pressure | 35 PSI | 45 PSI | 45 PSI |
| Burner Type | 50,000 BTU | 75,000 BTU | 100,000 BTU |
| Heater Cartridge | Ceramic | Ceramic | Ceramic |
| RynoLink Caster Assemblies | ✔ | ✔ | ✔ |
Watch the R4 Infrared Heater in Action
Modular Mini Infrared Heaters Overview (R2, R3, R4)
Discover the features that make the R4 a game changer for patching. This quick video walks through the modular design, caster system, and how the heater scales with your job.
See the Modular Infrared Heater in Real Job Conditions
Watch how contractors put the modular infrared heater to work in the field—fixing trip hazards, smoothing transitions, and creating seamless asphalt repairs up against buildings and curbs.
ANSWER FOR YOUR CONCERNS
| Questions | Answers |
|---|---|
| What size jobs is the R4 best for? | Larger repair zones like long seams, wide potholes, parking lot patches, and commercial surface work. |
| How fast does the R4 heat asphalt? | Typically in 8–10 minutes, depending on conditions. |
| Can I run this unit alone? | Yes! It’s designed for solo operation, even on big jobs. |
| Can I connect it to R2 or R3 heaters? | Absolutely. All RynoWorx Modular Mini Heaters are linkable via RynoLink caster assemblies. |
| Is this safe for busy sites or around buildings? | Yes. The R4 uses an enclosed ceramic heater—no open torch flames. |
Have questions? We’re here to help!
Speak to an Asphalt Expert!
| Model | R4 |
| Heating Area | 19" x 51" |
| Assembled Dimensions | 42-7/8" x 70-1/2" x 22" |
| Weight | 189 lbs |
| Fuel Type | Propane Vapor |
| Max Fuel Pressure | 45 psi |
| Burner Type | 100,000 BTU/hr Infrared |
| Heater Cartridge | Ceramic |
| Runtime | 6–8 hours on 30-lb propane tank |
0
5 stars
0% (0)
4 stars
0% (0)
3 stars
0% (0)
2 stars
0% (0)
1 star
0% (0)
Share your thoughts with other customers
Top customer reviews
No reviews
Wondering how you can make money all winter long — even when it's snowing outside? Welcome to the lucrative world of pothole repair!
It's a fact: large companies won't come out to fix one or two potholes on a driveway or parking lot. Great news, my friend — there are riches in those niches! Pick up an RY2x2 Machine and click the Make it a Biz box to get these great resources which we'll happily include with your purchase.
- Video Guide to Selling Pothole Repair as a Service: Judd Burdon walks you through how to find business, approach pavement asset owners, and land deals doing lucrative pothole repairs.
- Call Scripts: Too shy to go in and see a property owner? Get the Asphalt Kingdom Phone Script to use when calling and convert more customers. You'll have them at 'hello'.
- Facebook Ads: Use these gorgeous graphics to grab attention and get business! We've designed these social media ads so you just have to add your logo and post. Yours free when you add the Make it a Biz add-on to your purchase.
- Pothole Repair Proposal Template: Look like you've been in business forever even if you're just starting out. Our polished pothole proposal template helps your customers feel confident that you are a professional. Just fill in the blanks, print or email!
- Pricing Guide: There's nothing worse than working hard all day and just breaking even or worse — not making any money at all! Use our guide to anticipate unforeseen expenses and make sure you are charging what you deserve for the work you are going to do.
- Invitation to the AK Round Table: Our weekly Zoom meeting is the place to gather with other entrepreneurs just like you who want to start a business. Ask your questions and learn from others on the same path.
Pothole repair is profitable and you can reap the rewards doing it full time or as a side hustle. Just click on the checkbox to Make it a Biz!
Additional value when you order this product:
 Role-Playing Video |
$375 |
 Customizable Proposal Template |
$375 |
| Customizable Social Media Templates |
$425 |
 Phone Script |
$325 |
| Exclusive Access to AK Round Table Meetings |
Priceless |
| TOTAL VALUE | $1,500 |
A full 20 lb propane tank typically lasts about 8 hours on the R2, 5 hours on the R3, and 4 hours on the R4. Actual run time can vary depending on heat intensity and ambient temperature.
Yes. You can use an infrared asphalt heater over areas with existing repairs, including hot-pour rubberized crack filler and cold patch.
Make sure to remove and discard any melted rubber crack filler before placing your patch. Melted crack filler can create instability in the repair and reduce patch performance.
If the repair area is larger than your infrared heater’s square-foot coverage, you will need to do multiple presses. Each press typically takes about 7 minutes, depending on ambient temperature. You can overlap each press by about 4 inches to ensure consistent heat across the seam.
When adding new asphalt or millings, build it about 1/2 inch higher than the surrounding aged asphalt. After compacting and tamping, the repaired area should finish flush with the existing surface.
Place the torch underneath the stainless steel skirt. Ensure the torch is not directed at the ceramic surface.
A propane tank can freeze in cold weather because the liquid inside needs heat from the surrounding air to vaporize into gas. If it’s too cold outside or the tank is too low, it may not produce enough pressure to run your equipment.
Heat time can be as short as about 10 minutes, depending on the age of the asphalt, how clean the surface is, and the ambient temperature. Colder conditions typically require more time to soften the asphalt.
To avoid burning the surface and help the heat penetrate deeper, run the heater in two stages:
- High PSI: 26 to 35 PSI for 5 to 8 minutes
- Low PSI: 15 to 25 PSI for 5 to 8 minutes
