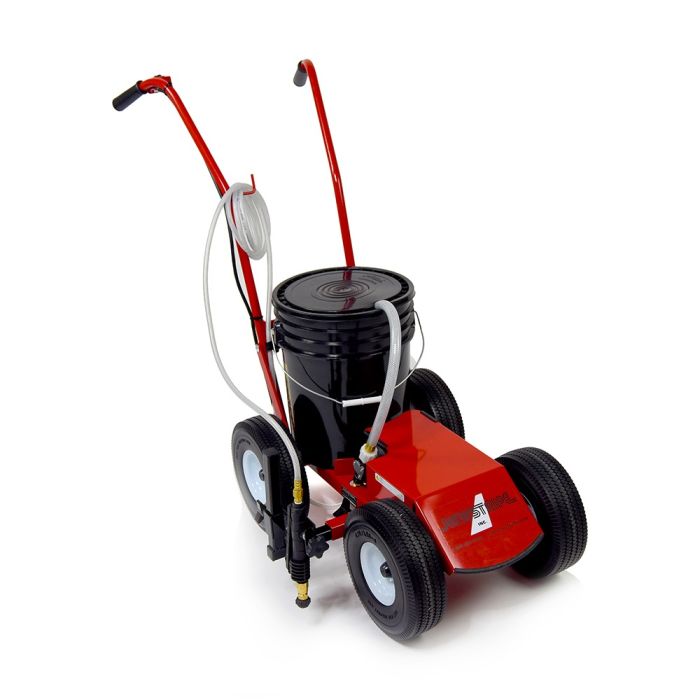

Newstripe EcoLiner Standard Battery Powered Field Striper
FREE SHIPPING- Fast setup, no pressurized tanks
- Adjustable 2–6 inch lines with clean edges
- Five-minute color change and rinse
Have questions? We’re here to help!
Paint pro-quality lines without gas or air
The Newstripe EcoLiner Standard is a low-maintenance battery powered field striper that walks on, stripes clean, and cleans up fast. The 12-volt electric diaphragm pump delivers smooth flow to a turf-tuned spray head, so grounds crews, schools, and parks can stripe game-ready fields with minimal downtime. You get Made in USA construction, a 24-month warranty, and a simple pail-on layout that keeps jobs moving.
Overview & Use Cases
Electric simplicity cuts maintenance, noise, and setup time. With the EcoLiner Standard you avoid pressurized vessels, reduce operator training, and standardize results across crews. The low-pressure 1.8 gpm pump, dual filters, and turf-focused nozzle stack are optimized for athletic fields, not pavement.
Key Features & Benefits
- Pail-on simplicity: Drop a 5-gallon pail of premixed athletic field paint on the machine and start striping. No pouring across tanks.
- Clean, adjustable lines: Set line width from 2 to 6 inches, then go. Inline and intake filtration help prevent clogs and drips.
- Quiet electric drive: A 12-volt low-pressure system paints for hours on a charge. No engine to service. Charger included.
- Built to last: Welded steel frame with 10 inch flat-free tires for uneven turf, proudly Made in the USA.
- Fast cleanup: Flush with warm soapy water and swap colors in minutes to prep for the next game.
Application Instructions
- 1. Prep paint: Use quality, true water-based field/traffic paint. Most products require thinning, typically at a minimum 1:1 ratio. Always strain paint before use. To estimate paint needs, try our paint calculator.
- 2. Prime with water: Seat the suction filter in a half-filled water pail, prime 15–30 seconds, check for leaks, then switch to paint.
- 3. Set width: Adjust nozzle height to stripe 2–6 inch lines. Align the nozzle slot correctly to travel.
- 4. Spray and go: Momentary or continuous switch positions control flow. Maintain even pace for uniform coverage.
- 5. Flush fast: After the job, flush with warm soapy water until clear. Do not use solvents.
Note: Do not use solvent-based paints or hardware-store latex paints. These can damage the pump and are not covered under warranty.
Recommended Uses
- Soccer, football, baseball, and multi-sport turf fields
- Schools, parks and recreation departments, clubs, and colleges
- Sidelines, hash marks, and practice grids, not pavement or traffic paint work
Need field numbers or end zone markings? Shop football number stencils to keep your field game-day ready.
Storage & Handling
- Rinse nozzle parts and screens, then reassemble once clean. Leave a small amount of cleaning solution or Pump Defender in the pump for storage. Do not run the pump dry.
- Store the machine dry and clean. For freezing conditions, flush with soapy water, then protect with Pump Defender before storage.
- Battery care: Use a high-performance 18 Ah SLA motorcycle battery, correct terminal orientation, and the included 120 V charger.
For upkeep tips that extend machine life, see our line striping maintenance guide.
Why Choose Newstripe EcoLiner Standard
You get the original pail-on battery powered field striper concept from Newstripe, backed by a 24-month warranty, US manufacturing, and a design that prioritizes simple upkeep. Train faster, stripe cleaner, and turn fields around between events with less labor. Shop now.
Have questions? We’re here to help!
| Shipping Weight | 64 lbs |
| Shipping Length | 39" |
| Shipping Width | 22" |
| Shipping Height | 12" |
| Model | EcoLiner Standard (10004483) |
|---|---|
| Application | Athletic field striping |
| Pump | Low pressure electric diaphragm, 1.8 gpm, 12 V |
| Power / Battery | External 12 V, 18 Ah SLA deep-cycle motorcycle battery (not included) |
| Battery Charger | 120 V plug-in charger included |
| Paint Capacity | 5-gallon pail-on design |
| Line Width | Adjustable 2–6 inches |
| Wheels | 10 inch flat-free turf tires |
| Dimensions (L×W×H) | 46" × 21.25" × 37" |
| Shipping (L×W×H) | 39" × 22" × 12" |
| Shipping Weight | 64 lb |
| Origin | Made in USA |
| Warranty | 24 months |
| Notes | Use quality true water-based athletic field paints. Do not use solvent-based paints. Most paints require thinning and straining before use. |
