Work harder and smarter with the PowrLiner 6955. With new features that improve your line striping efficiency, you can do your work easier with more user comfort!
Compatible with water-based paint and oil-based paint.

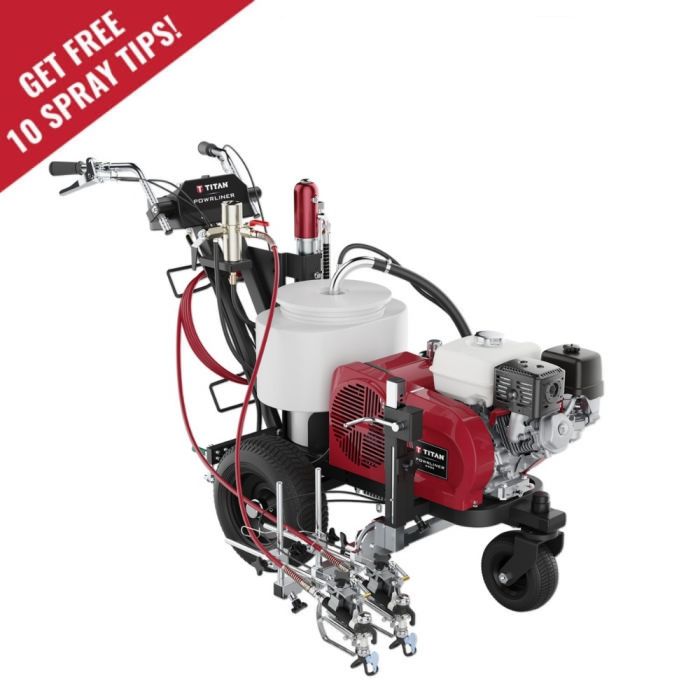

The Contractor's Workhorse: PowrLiner 6955
For line striping large-scale projects such as airports, roads, sports fields, and parking lots, the PowrLiner 6955 provides the power and output needed for you to complete these jobs with the crispest lines.
Power is what you need for finishing the big projects, and power is what you get with the 163cc Honda® OHV Engine and easy electric start from the new PowrCenter™. Easy-to-use controls and small added comforts, such as a recharging port for your cellphone or mp3 player, a holding tray, and a cup holder, help make the PowrLiner 6955 a strong line striper that makes your job easier.
You should never add water to paint. This is ready to go with a fresh five gallon pail. If the parking surface is bumpy, take some of the paint out before you start so you don't hit a bump and spill.
With a new Titan machine, it’s a good idea to flush the entire system and gun with mineral spirits before using it. If using latex/waterborne paint, flush with soap/water before you pour paint into the 5 gallon pail.
Yes, this machine can work with both Oil-Based Traffic Paint and Water-Based (Latex) Paint.
| Titan Model Number | 0290053 |
| Maximum Tip Size (1-gun Configuration) | 0.048"-0.050" |
| Maximum Tip Size (2-gun Configuration) | Maximum Tip Size (2-gun Configuration) |
| Maximum Paint Output | 2.25 GPM (9.77 lpm) |
| Maximum Spraying Speed* | 688 linear feet (210 m) per minute |
| Possible Width of Lines | 2" - 24" (5 cm - 60 cm) |
| Maximum Operating Pressure | 3300 PSI (22.8 MPa) |
| Maximum Length of Hose | 300' (91.4 m) |
| Powered By | Honda GX160 (5.5hp) with Low Oil Alert (Electric Start) |
| Pump Drive | Hydraulic |
| Electrical System | 12 W |
| Paint Outlet Filter - Element | 60 mesh |
| Paint Outlet Filter - Filter Area | 18 in2 (116 cm2) |
| Gun Model (Airless) | S-3 |
| Hose Model (Airless) | 316-505, measuring 1/4" x 50' (15.2 m) |
| Airless Striping Tips (Supplied per Gun) | 1 TR1™ Line Striping Tip (model number 697-419), 4" Line by .019" orifice |
| Weight - Unit | 370 lbs |
| Shipping Weight | 405 lbs |
| Dimensions - Unit | 41" High x 31" Wide x 60" Long 104 cm High x 79 cm Wide x 152 cm L |
| Dimensions - Unit As It Ships | 49" High x 33" Wide x 64" Long 125 cm High x 84 cm High x 163 cm Long |
| Coatings Compatibility reversible tip | Works with almost all advanced, low-VOC (volatile organic compounds) waterborne traffic paints |
| Common Applications | Full-time duty parking line striping and athletic line striping |
| Notes | *Based on 4" (10 cm) line @ 15 mil wet film thickness and 320 linear feet per gallon coverage. Need help with your Titan sprayer? Just call 1-800-526-5362 opt: 2. |
