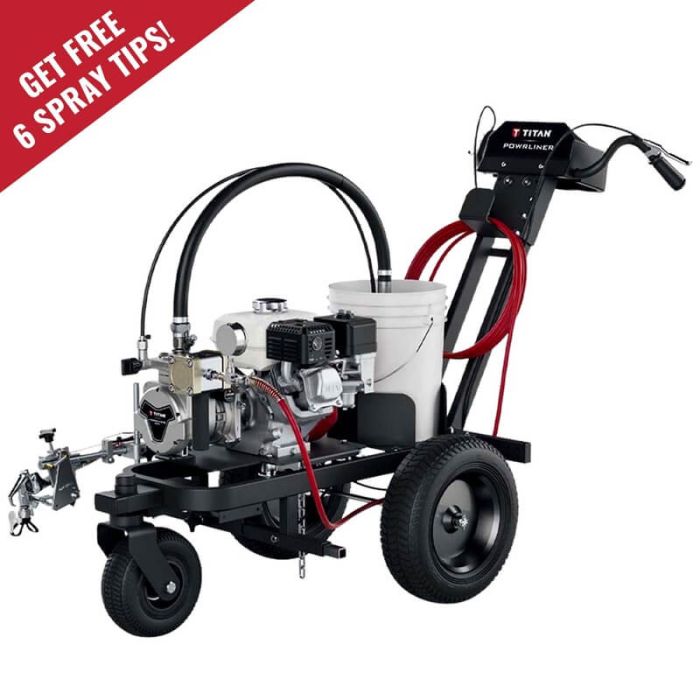

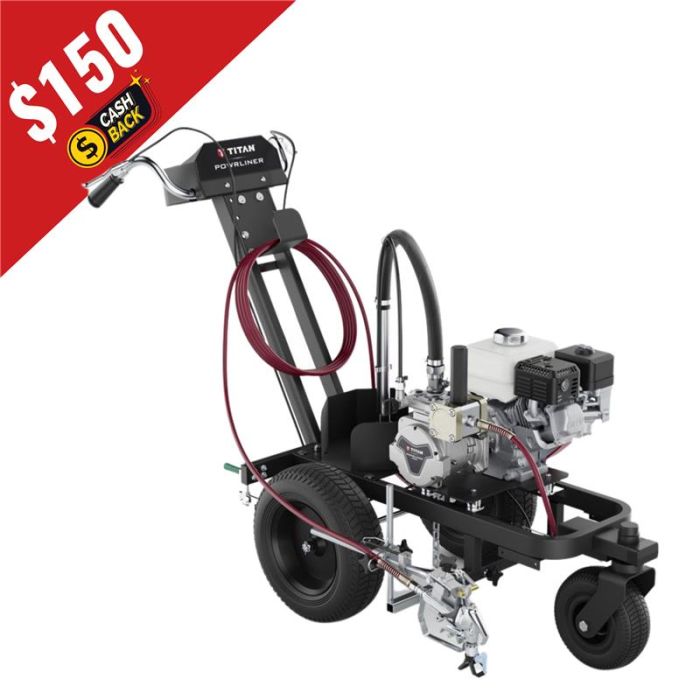

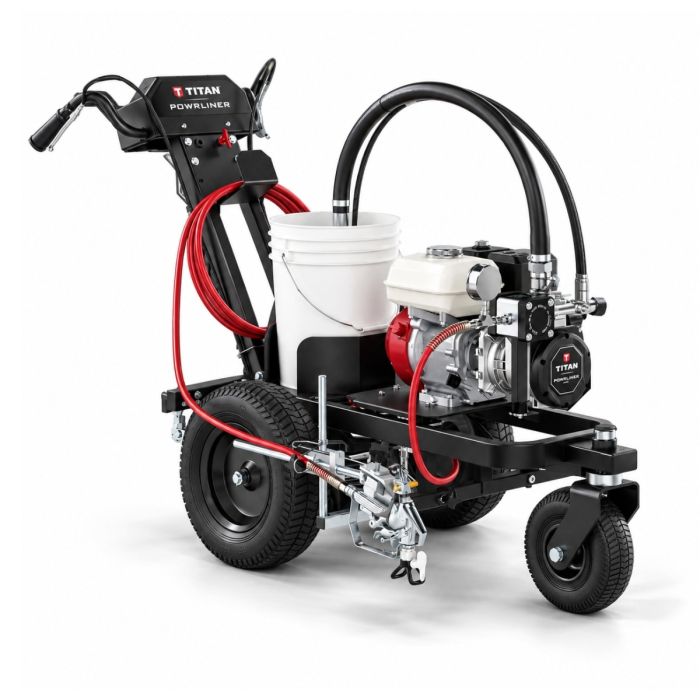

The newest product from Titan Tool is an in-demand one-gun line striper for the entry level contractor. This light-duty machine is perfect with a mid-sized linestriping business for someone who stripes weekly or monthly, or stripes small parking lots.
Titan had a mission: improve on its popular PL2855 PowrLiner to make it an industry-leading intermediate striper, and they delivered!
The Titan PowrLiner 3500 features a Honda GX120 (4hp) . It accepts a glass bead dispensing system, so if you want to add reflection to your lines, you can do it with this machine.
The machine features a detachable gun for stenciling, or converting the machine to paint something vertical.
The front wheel locks and unlocks using a caster release-trigger on the left handle bar.

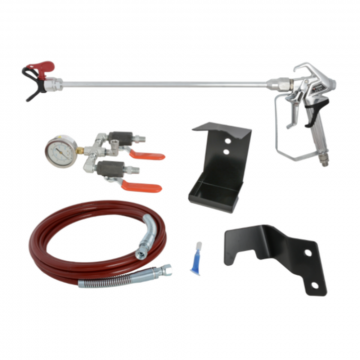

Includes a 50-foot 1/4 inch hose, a TR1 Line Striping Tip, and an RX80 Spray Gun. Everything you need to get up and running in one package.
Get the benefits of PermaStroke™ Technology
Sealed Hydraulic Line-striping System
FlatLine™ Pulsation Dampener
Sureflo™ Pusher Valve
The PowrLiner PL3500 is designed for contractors who work long and hard. The new swing-back cart design has a 65* frame stem design to give you more leverage. More leverage means you don't get as tired when you're striping. The 142-lb machine is light and easy to push, and includes a PowrCenter dash: cup holder, two tip holders, and a three-position handle with a hose wrap.
Use it with either latex or oil-based paint.
You should never add water to paint. This is ready to go with a fresh five gallon pail. If the parking surface is bumpy, take some of the paint out before you start so you don't hit a bump and spill.
The PL3500 can be made into a two gun stencil or striper, but it won't stripe two lines at the same time. Here is a picture of how one customer did it:
If this unit is new, it is shipped with test fluid in the fluid section to prevent corrosion during shipment and storage. This fluid must be thoroughly cleaned out of the system with mineral spirits before you begin spraying. Refer to the product manual...
With a new Titan machine, it’s a good idea to flush the entire system and gun with mineral spirits before using it. If using latex/waterborne paint, flush with soap/water before you pour paint into the 5 gallon pail.
Yes, this machine sprays Oil-Based Traffic Paint as well as Water-Based (Latex) Paint.
| Titan Model Number | 0537015 |
| Maximum Tip Size | 0.027" |
| Motor Technology | Gas |
| Powered By | Honda GX 120, 120 CC w/ Oil Alert, 4HP, OHV |
| Maximum Spraying Speed* | 0.75 GPM / 2.95 |
| Maximum Operating Pressure | 3300 PSI (22.8 MPa) |
| Paint Outlet Manifold Filter - Element | 60 mesh |
| Paint Outlet Manifold Filter -Filter Area | 18 in2 (116 cm2) |
| Weight | 142lbs/47kgs |
| Hose Model (Airless) | 316-505, measuring 1/4" x 50' (15.2 m) |
| Gun Model (Airless) | RX80 |
| Pump Drive | Hydraulic |
| Coatings Compatibility reversible tip | Works with almost all advanced, low-VOC (volatile organic compounds) waterborne traffic paints |
| Notes | Need help with your Titan sprayer? Just call 1-800-526-5362 opt: 2. |
