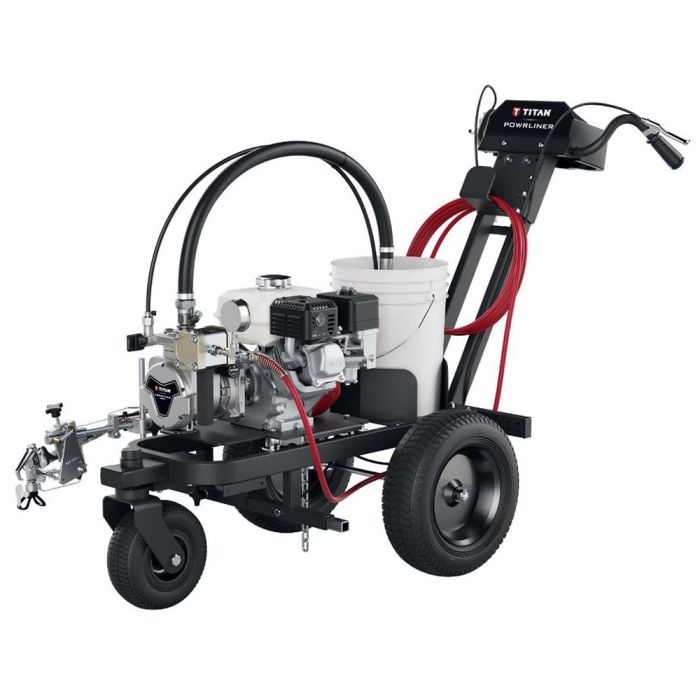

Titan PowrLiner 3500 Line Striper – 1-Gun Parking Lot Paint Sprayer
The Powrliner 3500 line striping machine from Titan gives you pro-quality lines, simple controls, and low maintenance so you can focus on work, not wrenching. Stripe parking lots, roads, or fields at up to $1 per linear foot with realistic $2,000+ days that let it pay for itself in 4 to 5 jobs.
Choose your freebie: 12 free spray tips OR 1 hopper + 6 free spray tips. Your free items will be shipped separately. Please contact Customer Service to redeem.
- 4-year limited warranty
- Sprays water-based or oil-based traffic paint
- Detachable gun for stencils, curbs, and tight areas
Free Shipping to commercial address with a dock or forkliftAvailability: In stock
PowrLiner PL3500 1 Gun Paint Sprayer – Reliable Line Striping Machine For Property Owners and New Stripers
Looking for an easy-to-prime, long-lasting, rugged line striping machine? This sealed hydraulic system works as hard as you do with time-saving features to eliminate pressure fluctuation and reduce the number of wearable parts. Stripe fields and pavement without worry with this comfortable, versatile machine.
Clear pavement markings aren't just good-looking: They're required by law and ADA regulations. If you're looking for an easy-to-start business, you can start by offering repainted lines to help owners avoid lawsuits. The PowrLiner 3500 is an ideal striper to start with because of its reduced maintenance needs and easy priming system. This machine is built to last and has a 4-year warranty. Pays for itself in under a week!
The newest product from Titan Tool is an in-demand one-gun parking lot striping machine for the entry-level contractor. This light-duty line striper is perfect with a mid-sized line striping business for someone who stripes weekly or monthly or stripes small parking lots.
- Paint striper comes with 4 year warranty.
- Sprays water or oil-based paint.
- Detachable gun to spray stencils or anything you'd like.
What Other Customers Say:
“I have the same one. Used it for 3 years now. No issues.“
Rick Freeman
Contractor, TDR ASPHALT SEALING
“The PL3500 is a BEAST!!!!! It's a MUST HAVE if you're thinking about adding striping to your business!“
Jef Fox
The PowrLiner 3500 is Loaded with Features
Titan had a mission: improve on its popular PL2855 PowrLiner to make it an industry-leading intermediate striper, and they delivered!
- New swing-back design
- Add an optional reflective glass bead dispenser
- Add an optional Lazy Liner ride-on driver so you can sit and stripe
- Add a dedicated stencil gun for more efficient operations.
The Titan PowrLiner 3500 line striping machine features a Honda GX120 (3.5hp) engine. Want to add reflection to your lines with reflective glass beads? This machine is compatible with your favorite glass bead dispensing system (not included).
This line striping machine features a detachable gun for stenciling or to paint something vertical.
The front wheel locks and unlocks using a caster release-trigger on the left handle bar.
Includes a 50-foot 1/4 inch hose, a TR1 Line Striping Tip, and an RX80 Spray Gun. Everything you need to get up and running in one package.
Get the benefits of PermaStroke™ Technology:
Sealed Hydraulic Line-striping System
- No piston rod or packings to wear out or service.
- No electronics or clutches to burn up or prematurely wear
- Longer stroking / More efficient priming system.
- Easy maintenance and field serviceable
- Easier to clean – fluid pump gets cleaner and cleans faster with less water/solvent.
- Lifetime Warranty on the Fluid Section
FlatLine™ Pulsation Dampener
- Top Performance at all pressures (PSI)
- Eliminates all pressure fluctuations and “dead-band” in the system and hose.
- Pressure consistency from 300psi – 3300psi
- Lifetime Warranty
- Nitrogen-charged for automatic control
Sureflo™ Pusher Valve
- Standard on all PL3500s
- Guaranteed to prime every time you start up
- No tools required to unseat lower check ball.
The PowrLiner PL3500 parking lot striping equipment is designed for contractors who work long and hard. The new swing-back cart design has a 65° frame stem design to give you more leverage. More leverage means you don't get as tired when you're striping. The 192-lb line striping machine is light and easy to push, and includes a PowrCenter dash: cup holder, two tip holders, and a three-position handle with a hose wrap.
Use it with either latex or oil-based paint.
Contractor-Grade Striping Power In A Compact 1-Gun Rig
If you want a reliable way to start or grow a striping business, the Titan PowrLiner 3500 gives you contractor-grade performance in a compact, easy-handling frame. Clear, sharp lines keep properties safe and ADA-compliant, and the 4-year manufacturer warranty helps you bid on jobs with confidence.
The sealed hydraulic system cuts down wearable parts, eliminates pressure fluctuation, and primes fast, so you spend more time spraying and less time troubleshooting. For many new stripers, this unit pays for itself in under a week of steady work.
Built For New Stripers And Property Owners
This line striper is ideal for small to mid-sized parking lots, fields, and access roads. It is perfect if you stripe weekly or monthly and want a machine that is light to push but tough enough for real job sites.
- Honda GX120 (3.5 hp) engine for dependable starts
- Detachable gun for stencils, curbs, and vertical surfaces
- Front wheel lock with handlebar trigger for straight or freehand lines
Use it with either waterborne latex paint or oil-based alkyd line paint so you can match local specs and customer preferences without changing machines.
What Other Customers Say
“I have the same one. Used it for 3 years now. No issues.“
Contractor, TDR ASPHALT SEALING
“The PL3500 is a BEAST!!!!! It's a MUST HAVE if you're thinking about adding striping to your business!“
Jef Fox
Time-Saving Technology That Keeps You Spraying
PermaStroke™ Technology gives you a sealed hydraulic line-striping system with no piston rod or packings to wear out, no electronics or clutches to burn, and a longer stroke that primes quickly. It is easy to clean in the field, and the fluid section carries a lifetime warranty.
FlatLine™ Pulsation Dampener keeps pressure consistent from low to high PSI, so your lines stay crisp at any speed. The Sureflo™ pusher valve helps guarantee it primes every time without tools when you start your Titan 3500 paint sprayer.
- PermaStroke™ Sealed Hydraulic System: No piston rod or packings to service, longer stroke for faster priming, easy to clean, lifetime warranty on the fluid section
- FlatLine™ Pulsation Dampener: Helps eliminate pressure fluctuation and keeps consistent output across pressures
- Sureflo™ Pusher Valve: Helps prime reliably without tools at startup
You can boost productivity with a reflective glass bead dispenser, the Lazy Liner ride-on driver, a dedicated stencil gun, and hi-visibility glass beads for brighter, more professional markings.
Comfortable Cart And Ready-To-Work Package
The swing-back cart uses a 65° frame stem design that gives you more leverage and less fatigue on long pulls. At about 192 pounds, the unit is light enough to maneuver yet stable on rougher pavement. A PowrCenter dash adds a cup holder, two tip holders, and a three-position handle with hose wrap to keep everything organized.
Each Titan PowrLiner 3500 ships with a 50-foot 1/4 inch hose, a TR1 line striping tip, and an RX80 spray gun so you can unbox, flush, and start painting fast with the setup contractors use every day.
QUESTIONS AND ANSWERS
| Questions | Answers |
|---|---|
| How easy is it to maintain and clean the system, especially considering potential paint clogging in a single-gun system? | It's designed with a straightforward cleaning process and minimal maintenance requirements to keep the sprayer in optimal condition |
| Does the single-gun setup provide sufficient precision and control, particularly for intricate striping designs or on varied surface conditions? | The gun paint sprayer delivers high precision and control over paint application, ensuring top-quality results even for intricate patterns. |
| Shipping | |
|---|---|
| Shipping Weight | 259 lb |
| Shipping Dimensions (L x W x H) | 69 in x 37.3 in x 49.3 in |
| Dimensions and Weight | |
| Empty Unit Weight | 192 lb |
| Empty Unit Dimensions | 65 in x 32.5 in x 39.5 in |
| Model and Warranty | |
| Titan Model Number | 537015 |
| Warranty |
4-year limited warranty
* See the Titan WearGuard Warranty for coverage details. Warranty terms may vary. For more details, call 1-866-399-5562.
|
| Engine and Spray System | |
| Engine and Power Source | Honda GX120 with Pull Start |
| Guns Included | 1 |
| Maximum Spray Tip Size | 0.027 in |
| Maximum Operating Pressure | 3300 psi (max) |
| Maximum Spraying Speed | 400 linear feet |
| Pump Drive | Clutchless Sealed Hydraulic |
| Airless Hose Included, Gun 1 | 1/4 in x 50 ft |
5
5 stars
100% (9)
4 stars
0% (0)
3 stars
0% (0)
2 stars
0% (0)
1 star
0% (0)
Share your thoughts with other customers
Top customer reviews
- Very pleasedI haven't had any mechanical issues, it works great, very pleased with how well it works, very low maintenance but having issues wit handle bars.
- Used it for 3 years nowI have the same one. Used it for 3 years now. No issues.
- Simple to useIt's a great machine. Simple to use
- No issuesWorking fine, no issues at all!
- Great!The machine is great and I make a lot of videos about your product to my YouTube channel.
- Perfectly fineThe equipment works perfectly fine
- I love it!I love it and it works perfect.
- Works pretty wellPerformance wise, the machine works pretty well.
- No complaintsBeen workng really well, it is easy to use. I have no complaints .
With a new Titan machine, it’s a good idea to flush the entire system and spray gun with mineral spirits before using it.
If you are using latex or waterborne paint, flush with soap and water before you pour paint into the 5 gallon pail.
Here is a video that walks you through it: Watch the video.
Watch the instructional video on how to use your line striper.
Watch the instructional video on how to clean your line striper.
