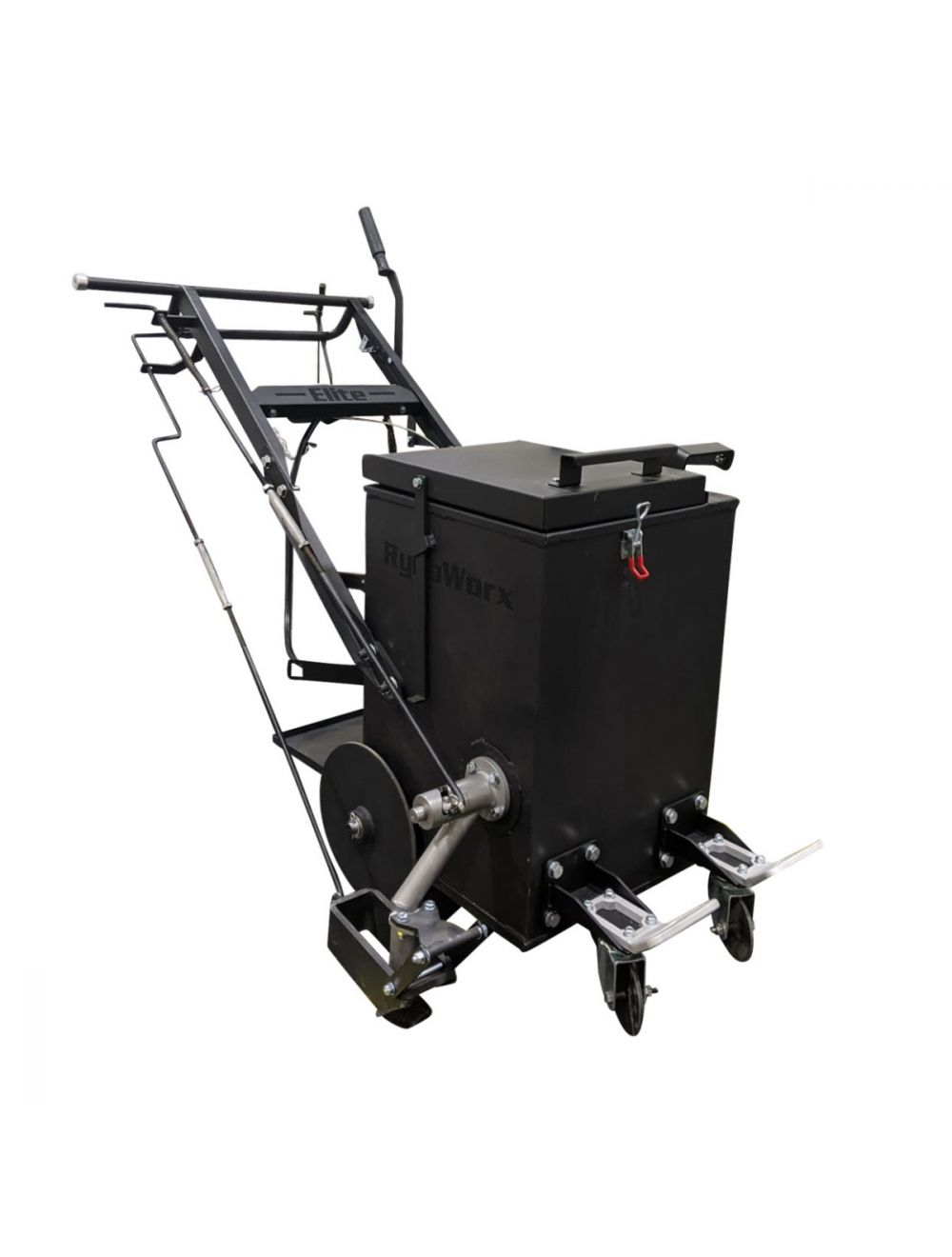

RY10 Elite Crackfill Melter Applicator

$RY10\u0020Elite\u0020Crackfill\u0020Melter\u0020Applicator'$

(12) Add Your Review

Precisely monitor and control your crack filling with an upgraded 10 gallon melter applicator machine for sealing asphalt cracks.

We have clients making $2,000+ per day applying hot rubber asphalt crack filler. Make $1 per foot! As easy as pushing a lawnmower or a shopping cart. Read more

Heat crackfill with less propane
Easier loading & unloading
1-year warranty

FREE SHIPPING*

Delivered in: 5-10 Business Days

Availability: In stock

We have clients making $2,000+ per day applying hot rubber asphalt crack filler. Make $1 per foot! As easy as pushing a lawnmower or a shopping cart. Read more

Precisely monitor and control your crack filling with an upgraded 10 gallon melter applicator machine for sealing asphalt cracks.

Heat crackfill with less propane
Easier loading & unloading
1-year warranty

FREE SHIPPING*

Delivered in: 5-10 Business Days

Availability: In stock

Have questions? We’re here to help!

Judd Burdon, President of Asphalt Kingdom

Speak to an Asphalt Expert!

Contact our Experts

If you're tired of using equipment that was invented decades ago and you're ready for real change, you have to check this parking lot crack sealer machine applicator out. We went out in the field and re-thought crack filling from the ground up so we can give you the best asphalt driveway crack filler there is.

The most ergonomic blacktop crack filler melter on the market
Virtually un-cloggable RynoValve
Heat crackfill faster, with less propane

Some of the incredible features and improvements of the RY10 ELITE asphalt crack filling equipment include:

RynoValve:

No more clogs! RynoValve keeps crack sealant inside the kettle, not in the valve. This means it is virtually drip free and can easily be removed and dipped in a solvent for easy future maintenance.
Stainless Steel: RynoValve is the industry’s first valve that doesn't require any pre-heat saving users from having to torch their valve before or during jobs.
The spreader shoe is designed to spread crack sealer both forward and reverse. No more puddling!
The redesigned shoe is narrower, so you leave a narrower strip of sealant on the pavement.

Sealed Burner:

Relocated to the rear of the kettle for greater operator visibility and sensitive controls relocated for increased reliability

RynoDash:

RynoDash places burner ignition and control at your finger tips and allows you to precisely monitor kettle temperature via a brand new digital display panel

Ergonomics:

This parking lot crack sealer machine's redesigned handle bars can be easily adjusted from 35"-42" for users of all heights
Adjustable valve control distance and resistance reduce operator fatigue
Redesigned 'on-the-fly' agitation pulls all the asphalt crack filling equipment's controls closer together to improve operator posture changes

Kettle:

Redesigned and optimized blacktop crack filler kettle reduces heat loss, supports 3 sided loading, has a latchable lid and will hold 2*30lb blocks of crack fill from empty
Tilted forward so in the case of overloading with crack sealer it spills away from the operator
RynoLifts added to the front of the kettle to make it super easy for two people to load on truck or trailer
Redesigned propane shelf increases the air gap between the propane tank and kettle
2-ton ratchet straps to secure your propane tank

Safety Features:

The sealed burner is equipped with a CSA / UL approved flameout sensor which detects flameouts commonly caused by wind and prevents fuel from flowing to the burner.
Fully equipped with CSA/UL approved regulator to provide precise control over fuel flow to the kettle.

Other:

Standard accessories torch + hose management and new holster added for convenience
Polished billet aluminum bar ends, thermometer bezel and lifts combine with a rugged black powder coat and stainless hardware to provide a professional appearance and durability

Asphalt Kingdom is your premier source for the RY10 Elite Crackfill Melter Applicator and other crack filler machines. Chat with us if you wish to know more about this crack sealer melter and other asphalt maintenance products we offer.

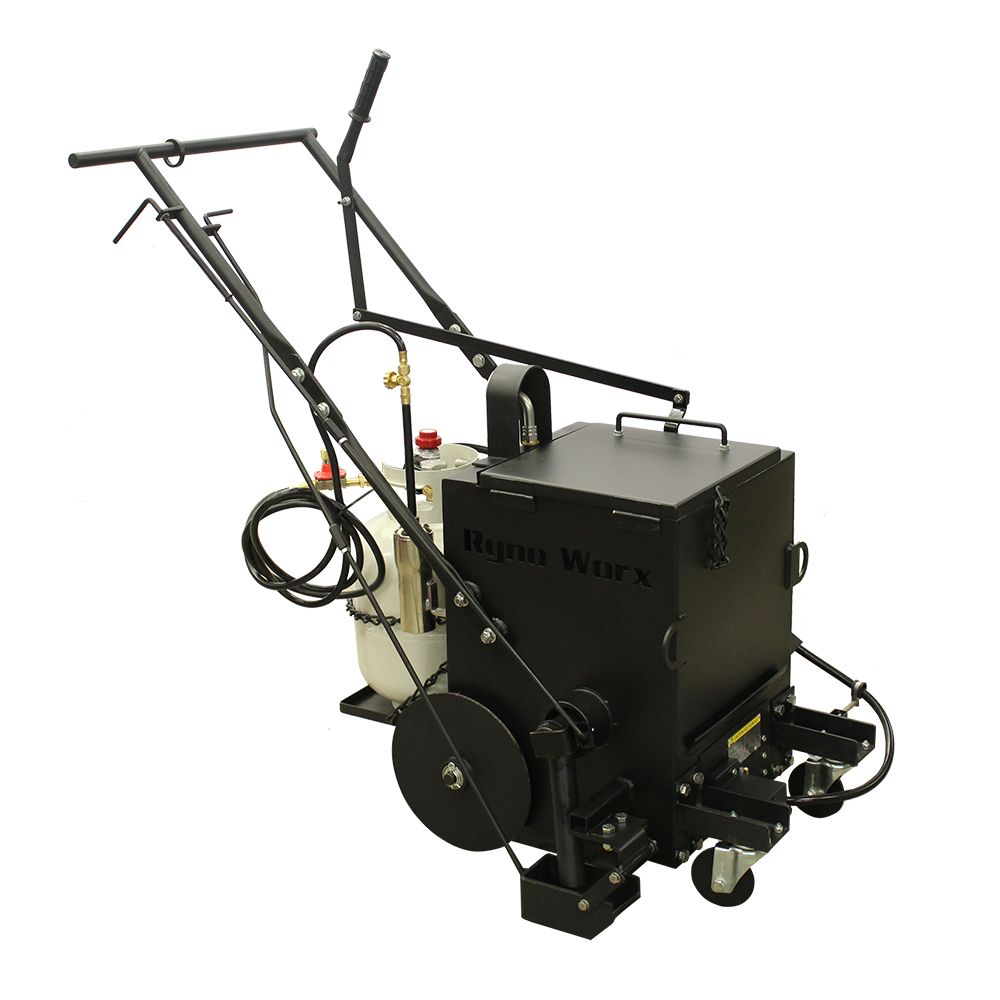

What's the difference between the RY10 PRO and the RY10 Elite?


Feature	RY10 PRO	RY10 Elite
Ignition	Ground level	Handle bars so control is at your fingertips
Valve	1.25" RynoValve with Drip Stop	1.25" RynoValve with Drip Stop
Handlebars	Adjustable from 35"-42"	Adjustable from 35"-42"
Kettle	12.5 Gallons	12.5 Gallons
Kettle Tilt	Forward tilt in case of overloading	Forward tilt in case of overloading
Lift Handle	None	RynoLifts for easy loading and unloading
Propane Security	Heavy-duty ratchet straps	Heavy-duty ratchet straps
Propane Safety	Air gap + heat shield	Air gap + heat shield
Temperature Gauge	Glycerin-filled dial	Digital readout

Follow along with Judd Burdon on this crack repair cart assembly video with unboxing and how to assemble the RY10 Elite or RY10 Pro.

“DO BUSINESS WITH THIS COMPANY! I can't begin to tell you just how HONEST and FRIENDLY these people are. I spoke with Glenn Teano. A very down to earth type of guy. Easy to talk to and let me say that I had some concerns and he didn't hesitate to straighten them out quickly. I ordered the Ryno Worx 10 ELITE crack machine. I can tell you that there was no lying or stretching the truth when he described this machine to me. This machine is all that he said it would be and it was delivered fast and exactly as he said it would be. I described this machine as "The Cadillac" of all crack filler machines that I have ever had the opportunity to own. I don't write these things about companies that don't deserve them and I can't say enough about this company. THANK YOU ASPHALT KINGDOM For your HONESTY and your GREAT PRODUCTS! You are certainly a SCHOLAR in my eyes! America Needs More Honest Companies Like Yours!!!! I GIVE YOU 10 STARS ALL DAY LONG!!”

–Norm Hayward, Owner of Tough Seal LLC

Crack filler Calculator

Let us help you determine what you need.

Have questions? We’re here to help!

Speak to an Asphalt Expert!

Contact our Experts

Specification

Ready To Ship

Yes

Shipping Dimensions	Box 1: 39" x 26" x 8" Box 2: 29" x 21" x 19"
Shipping Weight	Box 1: 60 lbs Box 2: 125 lbs Total: 185 lbs
Fluid Capacity	12.5 US Gallons
Kettle Steel Thickness	14 gauge
Assembled Dimensions	49.9" x 29.3" x 48.8"
Empty Weight	167.8 lbs / 76.3 kg
Max Capacity Weight	290.3 lbs / 132.0 kg
Fuel Type	Propane
Max Fuel Pressure	5 psi
Burner Type	50,000 BTU/hr Sealed Cast Iron Burner
Valve Type	1.25" RynoValve™
Agitation Type	On-the-fly

Customer Questions

How long can I keep unopened crack sealant?

Our crack filler has a shelf life of 10 years unopened. It's why so many of our customers choose to take advantage our half-pallet and pallet offerings: the savings are so high it is worth storing them until you need them. It can be stored outside; just cover it with weather-resistant pallet wrap and keep it out of the sun.

I have left over tar in my machine. Is it okay to leave it there and reheat it at a later time?

Absolutely! You just have to heat it up again when you are ready to use it.

How soon can you drive on newly filled cracks?

As soon as the crackfiller comes down to ambient temperature - sometimes as soon as 30-45 minutes when it is hot, and more quickly in cooler temperatures. Test with a stick: if you push down on the crackfiller and the crackfill doesn't tack to the stick, you're good to drive on it.

How does it ship? Do I need to assemble it?

The RY10 Elite ships partially assembled in two boxes. This allows us to ship by courier instead of LTL shipment, which is easier for most people to receive. And no pallet to dispose of, either!

How do I remove the valve from the RY10 Elite?

For detailed instructions on removing the valve pin or the entire valve body, watch this video clip.

How do I ignite the RY10 Elite burner?

Watch this video for detailed instructions on lighting the RY10 Elite burner.

How do I adjust the handles and tension on the RY10 Elite?

To adjust the handlebar height on the RY10 Elite, loosen the bolts that attach the handlebars to the kettle. Find your ideal height and tighten the bolts. This will potentially change the positioning of the control rods for the valve. For detailed instructions on adjusting the handlebars, control rods, and valve tension, please watch our video user manual.

How do I remove the burner from the RY10 Elite?

Please watch this video on how to remove the enclosed burner from the RY10 Elite.

How do you assemble the RY10 Pro or RY10 Elite?

This video shows you step by step how to assemble the RY10 Pro or RY10 Elite Crackfill Melter Applicator.

What is a thermocouple? How do I replace it?

Thermocouple is responsible for shutting off the propane to a burner in the unlikely event of a flame out. This prevents unburned gas from flooding into the combustion chamber or a small spark might cause an explosion. It is an essential part of keeping you safe while working. Watch the instructional video on how to re-seat the thermocouple.

When melting the rubberized crack filler, does the whole block with plastic wrapper go into the melter kettle?

Yes, you can put the whole block into the melter kettle along with the plastic cling film. Don't worry because including and melting the plastic film is 100% safe. Plus, it will not affect the adhesion or the performance of the rubberized crack filler.

How do I clean the rubber off the RY10's shoe and wheels?

Use the RY10's torch to soften the crack fill on the shoe and wheels. You can then use a scraper (you can use a flathead screwdriver for this) to remove the softened rubber.

The asphalt comes out too quickly even by barely touching the release valve, is there something I can do to get the flow slower, or the release less touchy?

To make it a little easier to control the flow of the crackfill:

Lower the temperature of the kettle and it will cause the rubber to flow more slowly.
Lengthen the control arm for the valve by adjusting the turnbuckle. That way, you will be able to have the handle closer to the handlebars, and your hand will be more closed, which should provide more control for the valve operation.

How To Battery Swap for RY10 Elite?

Watch the instructional video on how to battery swap the RY10 Elite.

How often should I clean my crack repair machine?

It's good to clean it out completely after 5 uses; otherwise there is a possibility of charring rubber in areas where there may be multiple layers of rubber built up.

To clean it, heat it up and scrape it out with a scraper on a broom handle. Then start fresh with a brand new box of crackfill.
