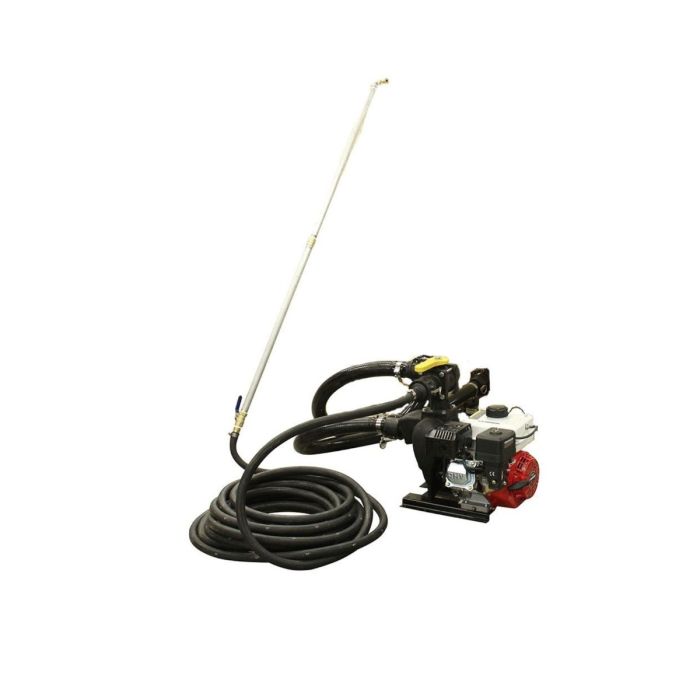

This Portable Sealing Spray System is perfect for parking lot owners, property managers or someone starting out in the sealcoating business. Add on a barrel or tote sprayer kit to adapt the sprayer to your desired configuration.
Does NOT include an empty tote or drum. Add a full tote of commercial grade coal tar sealer for up to 33,000 sq ft of sealcoating, or a drum of sealer for up to 7,150 sq ft. The Portable Seal Coating Machine is designed to work with coal tar sealer or specific asphalt emulsion sealers. If you are using sealer from another supplier it may work with our systems – contact the manufacturer to be sure. We cannot guarantee our sprayers will work with other sealers due to variations in additives.
Approved Sealers:
This system features a motor with either an aluminum or a Cast-Iron Sealcoating Pump and impeller. High-quality parts mean that you'll get superior performance and a much longer-lasting machine than the other options in the market. We've carefully balanced the engine-to-pump power ratio so you get optimal spray pressure and longer lasting engines.
These machines include Low Oil Shutdown Alert, which automatically shuts your system down if the oil becomes critically low, protecting your engine from damage.
The Portable Spray System also features a custom 3-way valve which makes shifting from re circulation mode to spray mode fast and easy.
This is the only portable spray system built with quick-connect fittings - you can assemble or disassemble your unit in under a minute! This makes clean up and maintenance much faster on the job site. The quick-connect spray tips also let you optimize your spray pattern, pressure, and sealer application rate without having to mess around with tools. If you're ready for an industry-leading product made with the sealcoater in mind, this is the system for you. This comes with a ball valve spray wand which is equipped with a safety lock for full-time spray.
Yes it does.
This system includes a 50 foot 3/4" diameter hose, rated to 275psi.
Yes, but not out of the box - you need to purchase the optional Tote Connection Kit.
Yes, simply close the main valve on the bottom of the tote. Disconnect the suction hose from the bottom of the tote and then put that end of the hose in a 5 gallon pail and turn the valve above the pump to spray mode and then start the engine. The pump will suck the water up out of the 5 gallon pail into the pump and down the spray hose out the gun and then spray the water out of the gun back into the 5 gallon pail you just sucked up and you can recirculate it in the pail like this while having the engine on low idle.
We cannot warranty a system if sand has been used in it as it will wear and ruin the seals. We do however, suggest applying the sand by hand with a grass seeding machine after applying a thin wet coat of sealer and then applying a second coat of sealer over top of the sand layer as a final coat.
300 gallon metal tanks with sweep agitation blades mostly move the product contents near the outside walls of the storage tank. The heavy paddles usually rotate very slowly and are driven by cumbersome gears, chains, and pulleys. The product near the center of the tank may never even get mixed at all!
To observe this, try this revealing experiment:
First take a can of paint, secondly take a paint stir stick. Now stir the contents using the stir stick only along the inside edge of the paint can slowly. Try to emulate the speed of a paddle moving around the inside of a storage tank. What happens to the contents in the center of the paint can? Hardly moves or mixes at all doesn't it?
The re-circulation system that comes with the AK Tote, Drum, Portable, 130 and 230 Sprayers is absolutely amazing. Your sealer mixes up in 3 to 4 minutes and ready to apply.
These systems are field-tested with our own brand of Coal Tar asphalt sealer and can be used with specific brands of Asphalt Emulsion sealer. The systems cannot spray sealer with sand.
Approved Sealers:
We can't guarantee the performance of the systems with other people's sealer because they may add additives that we don't know about that could affect the performance of the pump, hoses, circulation, etc. We use the industry's best-quality sealer and we can assure you that you will not have any issues with it; if you wish to use another brand of sealer please contact the manufacturer to guarantee performance with your spray system.
Any standard 4-stroke motor can be used. Like the ones used for lawn mowers, snow blowers, etc.
For Launtop engines, 5W-40 is recommended and you can fill up to the level of oil gauge which is about 0.5 Liter. For Honda engines, you can use 10W-30 or the 5W-30 during the cold season - around 0.55-0.6 Liter depending on the model.
Please refer to the manual included with your purchase.
We recommend that you have the filter "pointing" down, that way gravity will help move particulates out of the way of the main flow.
The filter connects to the output port of the pump, and then your spray hose connects to the filter kit. Steps on how to assemble the Filter Kit:
No. You will need to prime the system first before using it, then mix your sealer with a drill mixer prior to turning on your machine.
It's best to always have a bucket of soap and water handy. If there are stains, try an orange based hand cleaner available at any auto parts store. Apply to the overspray and let it work in for several minutes before removing with soapy water. You may have to repeat this application several times.
Depending on the pump that you have, installation of the replacement seal kit is easy. Please watch the instructional video on how to replace the seal kit for your Aluminum pump and Cast Iron Pump.
$499.00 $474.05
5% discount when buying together
55 gallons of commercial grade coal tar asphalt sealer that rejuvenates and protects asphalt from decaying. 5,500 square feet of coverage.
| Engine Options | Launtop LT210 7.0HP Four-Stroke Engine with Low Oil Shutdown, Recoil Start or Honda GX160 5.5HP Four-Stroke Engine with Low Oil Shutdown, Recoil Start |
| Pump Specs | Standard: 2” Aluminum Centrifugal Pump Standard Duty, EPDM Mechanical Seal Cast Iron Impeller Or optional upgrade 2" Cast Iron Centrifugal Pump Severe Duty, Viton/Tungsten Mechanical Seal Cast Iron Impeller Stainless Steel Wear Plate |
| Tank | 50’ x ¾” – 275psi Rated Sealcoating Hose 6’ Ball Valve Gun w Hose Swivel 2GPM, 3GPM, 4GPM Quick-Connect Spray Tips (1/Each) Quick-Connect 3-Way Valve |
| Included Accessories | 50’ x ¾” – 275psi Rated Sealcoating Hose 6’ Ball Valve Gun w Hose Swivel 2GPM, 3GPM, 4GPM Quick-Connect Spray Tips (1/Each) Quick-Connect 3-Way Valve |
| Performance | Agitation through pump recirculation @ 165 GPM Sprayer Pressure: 45 psi at tip |
| Weight | 155 lbs |
| Dimensions | 30" x 25" x 30" |
| Sealer Compatibility | Refined coal tar emulsion without additives Asphalt emulsion sealer without additives |
| Manuals |
